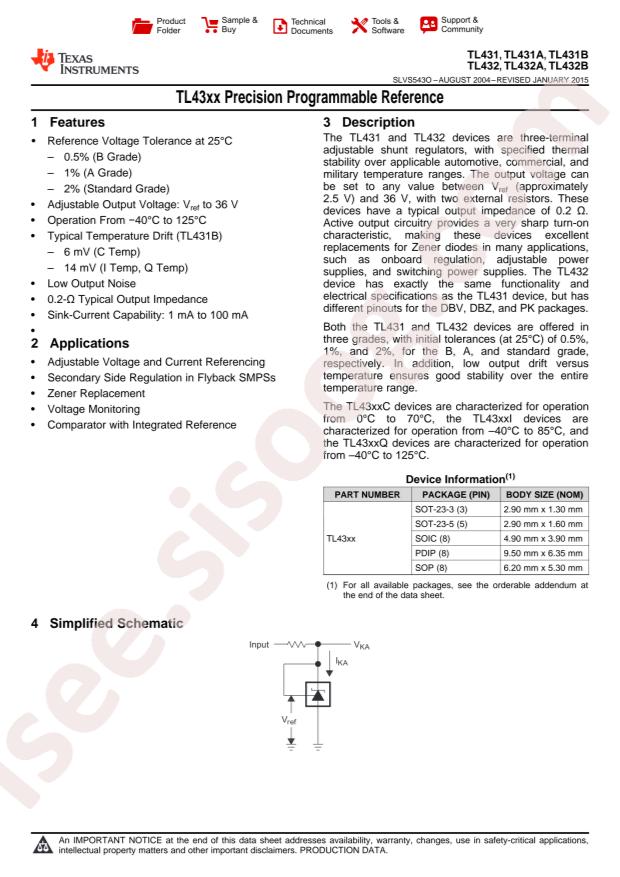

دیتاشیت TL431BQDBZR
مشخصات دیتاشیت
| نام دیتاشیت | TL431BQDBZR |
|---|---|
| حجم فایل | 91.513 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 78 |
TL431BQDBZR |
دانلود دیتاشیت |
|---|
سایر مستندات
TL431x, TL432x Datasheet 84 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: Texas Instruments TL431BQDBZR
- Tolerance: ±0.5%
- Output Type: Adjustable
- Input Voltage: -
- Output Current: 100mA
- Output Voltage: 2.495V~36V
- Reference Type: parallel connection
- Supply Current: -
- Noise - 10Hz to 10kHz: -
- Operating Temperature: -40°C~+125°C@(Ta)
- Noise - 1/10Hz to 10Hz: -
- Temperature Coefficient: -
- Minimum Cathode Current for Regulation: 700uA

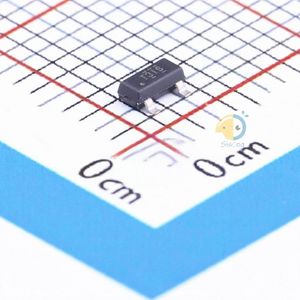

- Package: SOT-23
- Manufacturer: Texas Instruments
- Supplier Device Package: SOT-23-3
- Base Part Number: TL431
- Voltage - Input: -
- Voltage - Output (Max): 36V
- Packaging: Cut Tape (CT)
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Voltage - Output (Min/Fixed): 2.495V
- Noise - 0.1Hz to 10Hz: -
- Current - Cathode: 700µA
- Mounting Type: Surface Mount
- Part Status: Active
- Series: -
- Current - Output: 100mA
- Current - Supply: -
- detail: Shunt Voltage Reference IC 36V ±0.5% SOT-23-3
