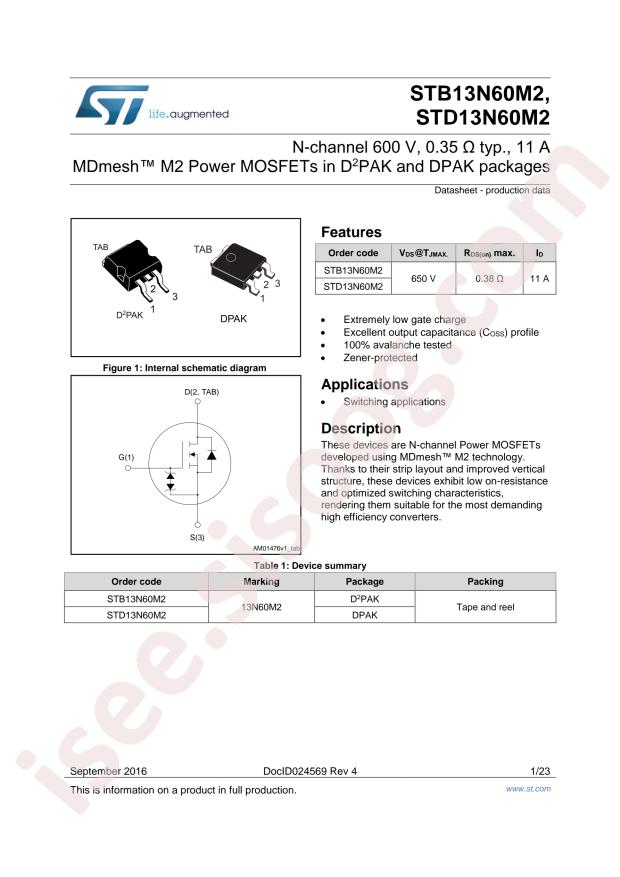

دیتاشیت STB13N60M2
مشخصات دیتاشیت
| نام دیتاشیت |
STB13N60M2
|
| حجم فایل |
62.295
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STB13N60M2
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
110W
-
Total Gate Charge (Qg@Vgs):
17nC@10V
-
Drain Source Voltage (Vdss):
650V
-
Input Capacitance (Ciss@Vds):
580pF@100V
-
Continuous Drain Current (Id):
11A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
380mΩ@10V,5.5A
-
Package:
TO-263
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ II Plus
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
11A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
380mOhm @ 5.5A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
17nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
580pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
110W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D2PAK
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
STB13N
-
detail:
N-Channel 600V 11A (Tc) 110W (Tc) Surface Mount D2PAK
