دیتاشیت VNI2140JTR

VNI2140J

مشخصات دیتاشیت

نام دیتاشیت VNI2140J
حجم فایل 816 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

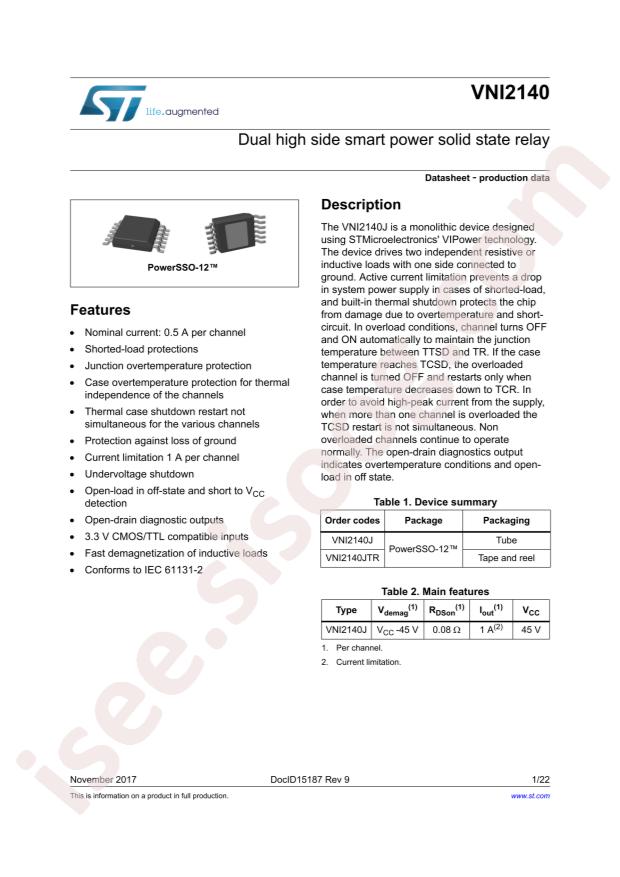

دانلود دیتاشیت VNI2140J

VNI2140J Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: STMicroelectronics VNI2140JTR
  • Input Voltage: 9V~45V
  • Output Current: 500mA
  • Number of Outputs: 2
  • Resistor On-State: 80mΩ
  • Operating Temperature -: -40°C~+125°C
  • Package: PowerSSO-12
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Switch Type: General Purpose
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 9V ~ 45V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 500mA
  • Rds On (Typ): 80mOhm
  • Input Type: Non-Inverting
  • Features: -
  • Fault Protection: Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerSSO-12™
  • Package / Case: 12-PowerLSOP (0.154", 3.90mm Width)
  • Base Part Number: VNI2140
  • detail: Power Switch/Driver 1:1 N-Channel 500mA PowerSSO-12™
