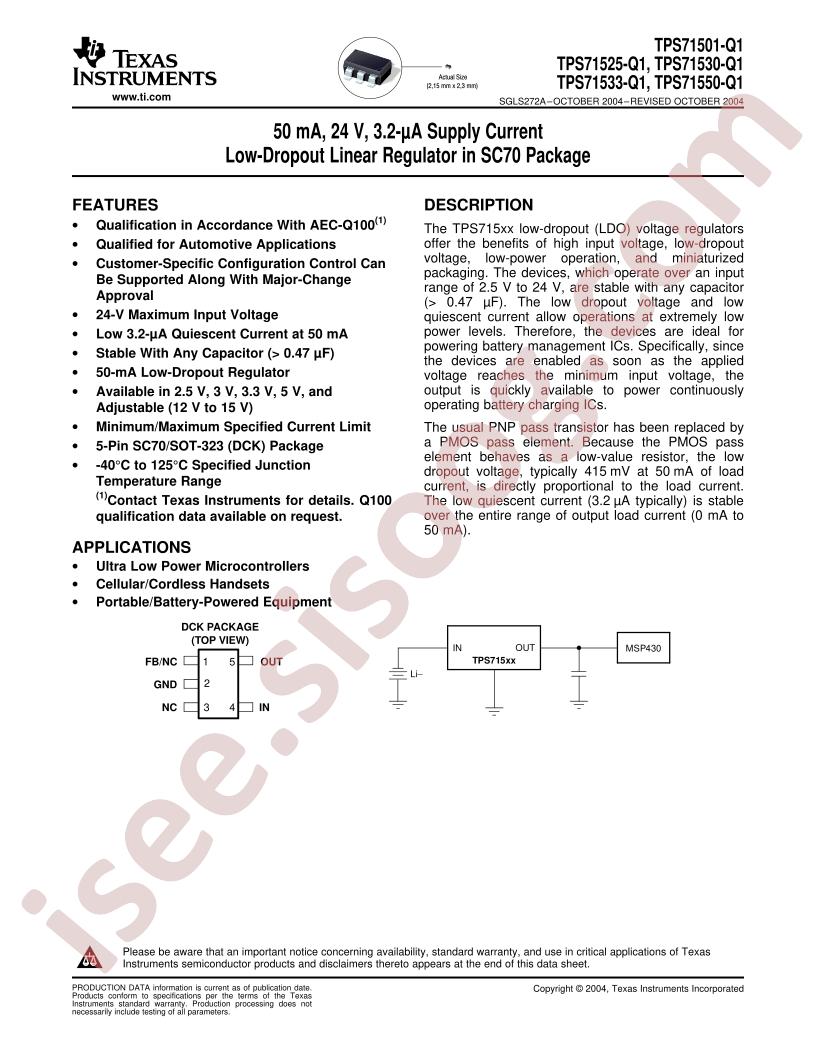

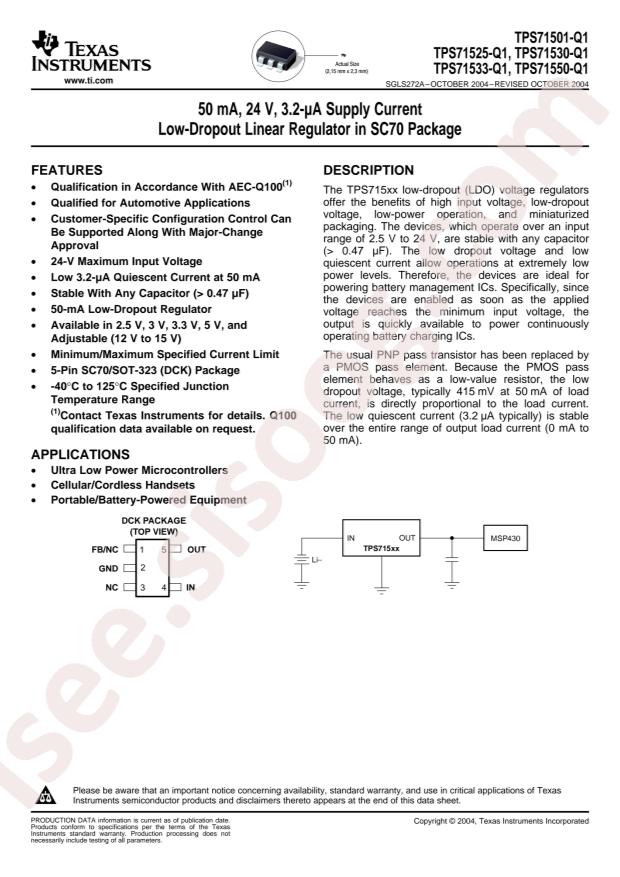

دیتاشیت TPS71550QDCKRQ1
مشخصات دیتاشیت
| نام دیتاشیت |
TPS715xx-Q1
|
| حجم فایل |
236.516
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
11
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS71550QDCKRQ1
-
Output Current:
50mA
-
Output Voltage:
5V
-
Dropout Voltage:
0.75V@(50mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
24V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
12uA
-
Power Supply Rejection Ratio (PSRR):
60dB@(100kHz)
-
Package:
SC-70
-
Manufacturer:
Texas Instruments
-
Number of Regulators:
1
-
Current - Quiescent (Iq):
12µA
-
Base Part Number:
TPS715
-
Voltage - Input (Max):
24V
-
Supplier Device Package:
SC-70-5
-
Voltage - Output (Max):
-
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Protection Features:
Over Current, Reverse Polarity
-
Control Features:
-
-
Voltage - Output (Min/Fixed):
5V
-
Output Type:
Fixed
-
Voltage Dropout (Max):
0.75V @ 50mA
-
Part Status:
Active
-
Series:
Automotive, AEC-Q100
-
Current - Output:
50mA
-
PSRR:
60dB (100kHz)
-
Output Configuration:
Positive
-
Package / Case:
5-TSSOP, SC-70-5, SOT-353
-
detail:
Linear Voltage Regulator IC 1 Output 50mA SC-70-5
