STD2N62K3 دیتاشیت

STD2N62K3

مشخصات دیتاشیت

نام دیتاشیت STD2N62K3
حجم فایل 74.984 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

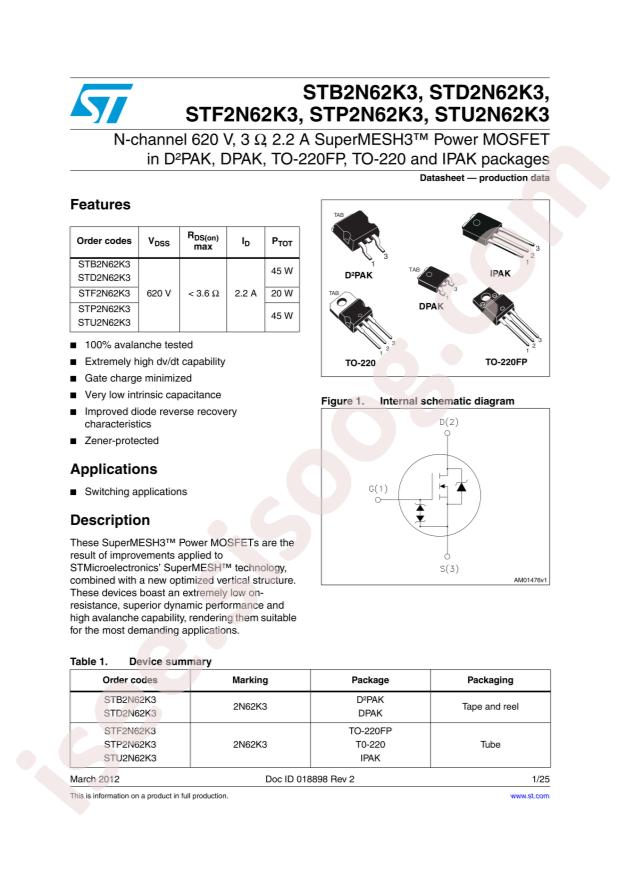

مشاهده دیتاشیت STD2N62K3

دانلود دیتاشیت

سایر مستندات

STx2N62K3 27 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STD2N62K3
  • Power Dissipation (Pd): 45W
  • Total Gate Charge (Qg@Vgs): 15nC@10V
  • Drain Source Voltage (Vdss): 620V
  • Input Capacitance (Ciss@Vds): 340pF@50V
  • Continuous Drain Current (Id): 2.2A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@50uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 3.6Ω@10V,1.1A
  • Package: TO-252-2(DPAK)
  • Manufacturer: STMicroelectronics
  • Series: SuperMESH3™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 620V
  • Current - Continuous Drain (Id) @ 25°C: 2.2A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 3.6Ohm @ 1.1A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 50µA
  • Gate Charge (Qg) (Max) @ Vgs: 15nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 340pF @ 50V
  • FET Feature: -
  • Power Dissipation (Max): 45W (Tc)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD2N62
  • detail: N-Channel 620V 2.2A (Tc) 45W (Tc) Surface Mount DPAK
