TS5A3357DCUR دیتاشیت

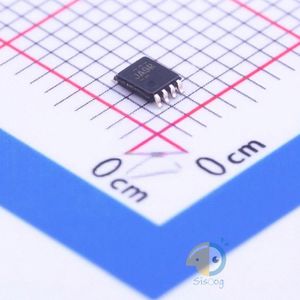

TS5A3357DCUR

مشخصات دیتاشیت

نام دیتاشیت TS5A3357DCUR
حجم فایل 65.066 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

مشاهده دیتاشیت TS5A3357DCUR

دانلود دیتاشیت

سایر مستندات

TS5A3357 31 pages

مشخصات فنی

  • RoHS: true
  • Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
  • Datasheet: Texas Instruments TS5A3357DCUR
  • Turn-on time: 6.5ns
  • Turn-off time: 3.7ns
  • Supply Voltage: 1.65V~5.5V
  • Switch Circuit: 单刀三掷(SP3T)
  • Number of Channels: 1
  • Operating Temperature: -40°C~+85°C
  • On-State Resistance (Max): 15Ω
  • Package: VSSOP-8
  • Manufacturer: Texas Instruments
  • Channel Capacitance (CS(off), CD(off)): 4.5pF, 10.5pF
  • Channel-to-Channel Matching (ΔRon): 100mOhm
  • Packaging: Cut Tape (CT)
  • Multiplexer/Demultiplexer Circuit: 3:1
  • -3db Bandwidth: 334MHz
  • Charge Injection: 3.4pC
  • Current - Leakage (IS(off)) (Max): 100nA
  • Package / Case: 8-VFSOP (0.091", 2.30mm Width)
  • Voltage - Supply, Single (V+): 1.65V ~ 5.5V
  • Switch Time (Ton, Toff) (Max): 6.5ns, 3.7ns
  • Supplier Device Package: 8-VSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: TS5A335
  • Voltage - Supply, Dual (V±): -
  • Number of Circuits: 1
  • Crosstalk: -62dB @ 10MHz
  • Part Status: Active
  • Series: -
  • detail: 1 Circuit IC Switch 3:1 15Ohm 8-VSSOP
