دیتاشیت TPS71533DCKR

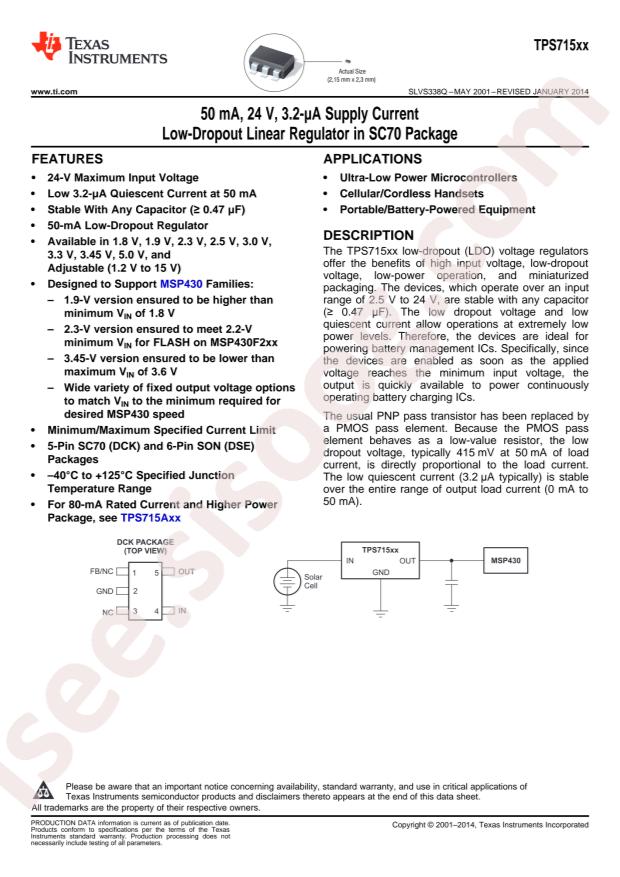

TPS715xx Datasheet

مشخصات دیتاشیت

نام دیتاشیت TPS715xx Datasheet
حجم فایل 1036.661 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت TPS715xx Datasheet

TPS715xx Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TPS71533DCKR
  • Output Type: Fixed
  • Output Current: 50mA
  • Output Voltage: 3.3V
  • Dropout Voltage: 750mV@(50mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 24V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 4.2uA
  • Power Supply Rejection Ratio (PSRR): 60dB@(100kHz)
  • Package: SC-70-5
  • Manufacturer: Texas Instruments
  • Number of Regulators: 1
  • Current - Quiescent (Iq): 4.2µA
  • Base Part Number: TPS715
  • Voltage - Input (Max): 24V
  • Supplier Device Package: SC-70-5
  • Voltage - Output (Max): -
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Protection Features: Over Current
  • Control Features: -
  • Voltage - Output (Min/Fixed): 3.3V
  • Voltage Dropout (Max): 0.75V @ 50mA
  • Part Status: Active
  • Series: -
  • Current - Output: 50mA
  • PSRR: 60dB (100kHz)
  • Output Configuration: Positive
  • Package / Case: 5-TSSOP, SC-70-5, SOT-353
  • detail: Linear Voltage Regulator IC 1 Output 50mA SC-70-5
