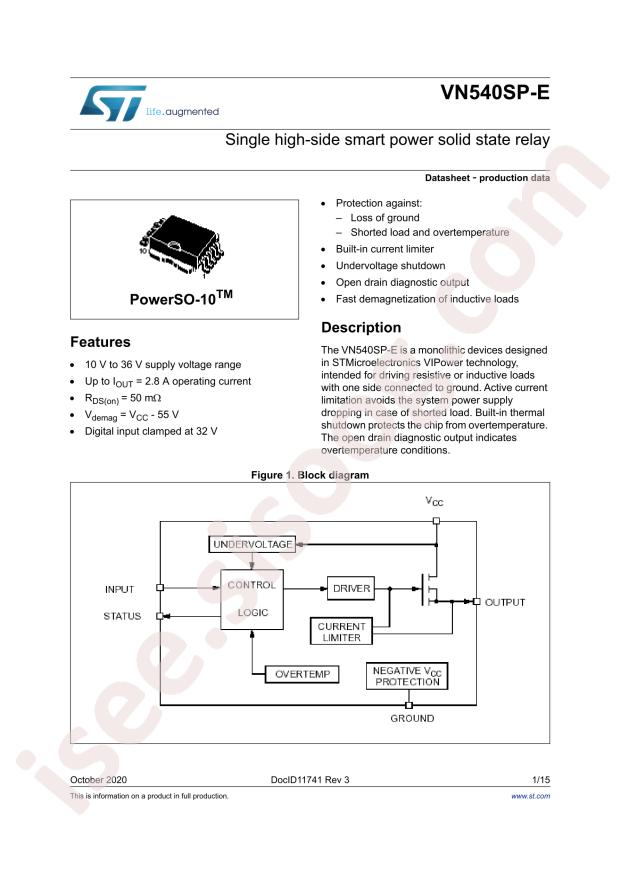

VN540SPTR-E دیتاشیت

VN540SPTR-E

مشخصات دیتاشیت

نام دیتاشیت VN540SPTR-E
حجم فایل 61.945 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت VN540SPTR-E

دانلود دیتاشیت

سایر مستندات

VN540-E, VN540SP-E, VN540-12-E 18 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: STMicroelectronics VN540SPTR-E
  • Input Voltage: 10V~36V
  • Output Current: 2.8A
  • Number of Outputs: 1
  • Resistor On-State: 50mΩ
  • Operating Temperature -: -25°C~+85°C
  • Package: PowerSO-10
  • Manufacturer: STMicroelectronics
  • Series: VIPower™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: General Purpose
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: -
  • Interface: On/Off
  • Voltage - Load: 10V ~ 36V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 2.8A
  • Rds On (Typ): 50mOhm (Max)
  • Input Type: Non-Inverting
  • Features: Status Flag
  • Fault Protection: Current Limiting (Fixed), Over Temperature
  • Operating Temperature: -25°C ~ 85°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 10-PowerSO
  • Package / Case: PowerSO-10 Exposed Bottom Pad
  • Base Part Number: VN540
  • detail: Power Switch/Driver 1:1 2.8A 10-PowerSO
