TPS22921YZPR دیتاشیت

TPS22921YZPR

مشخصات دیتاشیت

نام دیتاشیت TPS22921YZPR
حجم فایل 109.033 کیلوبایت
نوع فایل pdf
تعداد صفحات 37

دانلود دیتاشیت TPS22921YZPR

دانلود دیتاشیت

سایر مستندات

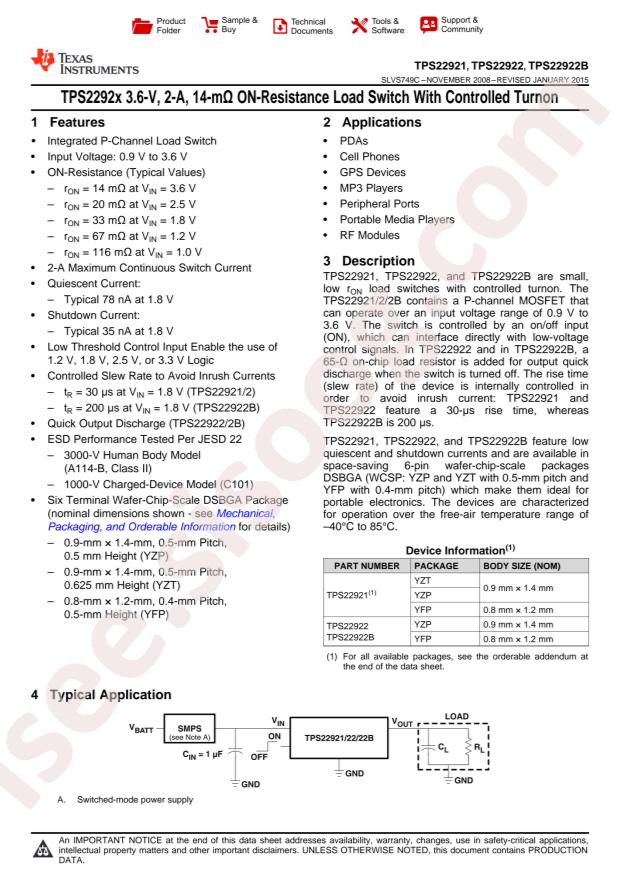

TPS22921-22(B) Datasheet 37 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS22921YZPR
  • Input Voltage: 0.9V~3.6V
  • Output Current: 2A
  • Number of Outputs: 1
  • Resistor On-State: 14mΩ
  • Operating Temperature -: -40°C~+85°C
  • Package: BGA-6
  • Manufacturer: Texas Instruments
  • Input Type: Non-Inverting
  • Output Configuration: High Side
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Packaging: Cut Tape (CT)
  • Ratio - Input:Output: 1:1
  • Switch Type: General Purpose
  • Part Status: Active
  • Supplier Device Package: 6-DSBGA, 6-WCSP (1.4x0.9)
  • Mounting Type: Surface Mount
  • Fault Protection: -
  • Rds On (Typ): 14mOhm
  • Current - Output (Max): 2A
  • Package / Case: 6-XFBGA, DSBGA
  • Series: -
  • Interface: On/Off
  • Base Part Number: TPS229
  • Features: Slew Rate Controlled
  • Output Type: P-Channel
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Voltage - Load: 0.9V ~ 3.6V
  • detail: Power Switch/Driver 1:1 P-Channel 2A 6-DSBGA, 6-WCSP (1.4x0.9)
