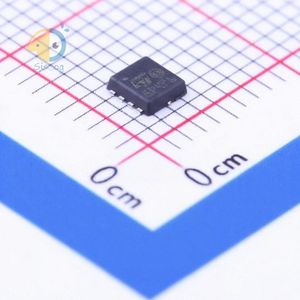

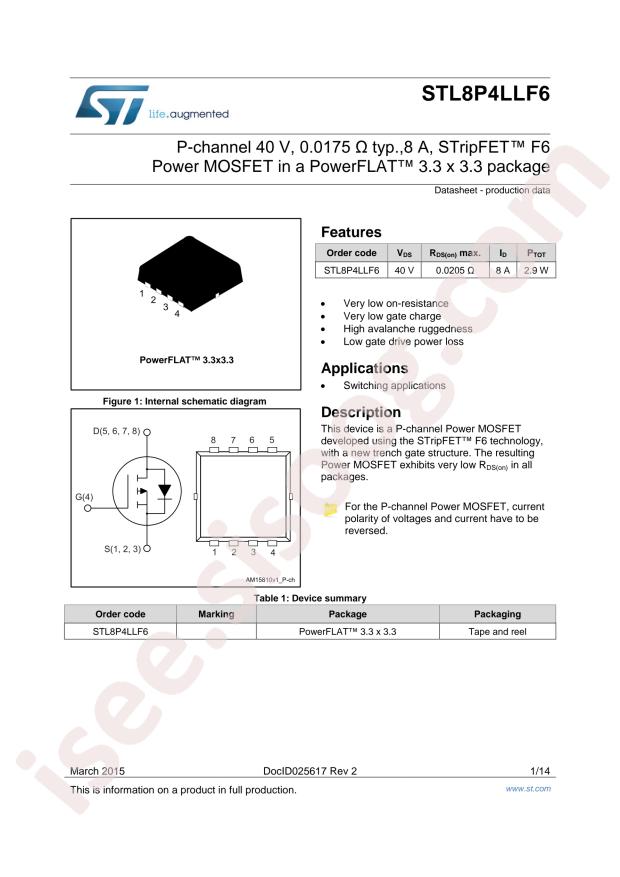

STL8P4LLF6 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STL8P4LLF6
|
|
حجم فایل
|
59.984
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STL8P4LLF6
-
Power Dissipation (Pd):
2.9W
-
Drain Source Voltage (Vdss):
40V
-
Continuous Drain Current (Id):
-
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
20.5mΩ@10V,4A
-
Package:
PowerFLAT(3.3x3.3)
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ F6
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
-
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
20.5mOhm @ 4A, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
22nC @ 4.5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
2850pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
2.9W (Ta)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
PowerFlat™ (3.3x3.3)
-
Package / Case:
8-PowerVDFN
-
Base Part Number:
STL8
-
detail:
P-Channel 40V 2.9W (Ta) Surface Mount PowerFlat™ (3.3x3.3)
