BTA12-600BRG Datasheet

BTA12-600BRG

Datasheet specifications

Datasheet's name BTA12-600BRG
File size 62.525 KB
File type pdf
Number of pages 13

Download Datasheet BTA12-600BRG

Download Datasheet

Other documentations

BT(A,B)12, T12xx 16 pages

Technical specifications

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/TRIACs
  • Datasheet: STMicroelectronics BTA12-600BRG

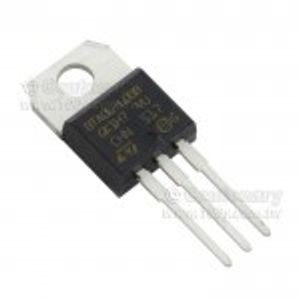

  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Triac Type: Standard
  • Voltage - Off State: 600V
  • Current - On State (It (RMS)) (Max): 12A
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 120A, 126A
  • Current - Gate Trigger (Igt) (Max): 50mA
  • Current - Hold (Ih) (Max): 50mA
  • Configuration: Single
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: BTA12
  • detail: TRIAC Standard 600V 12A Through Hole TO-220AB
