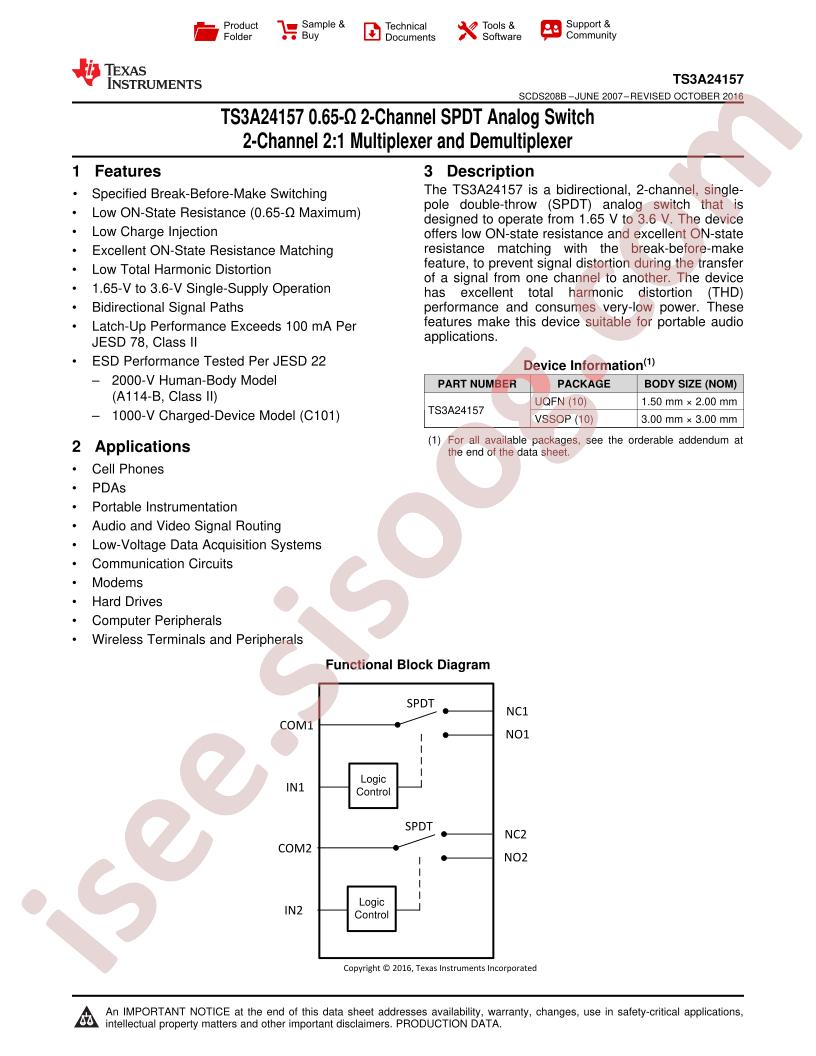

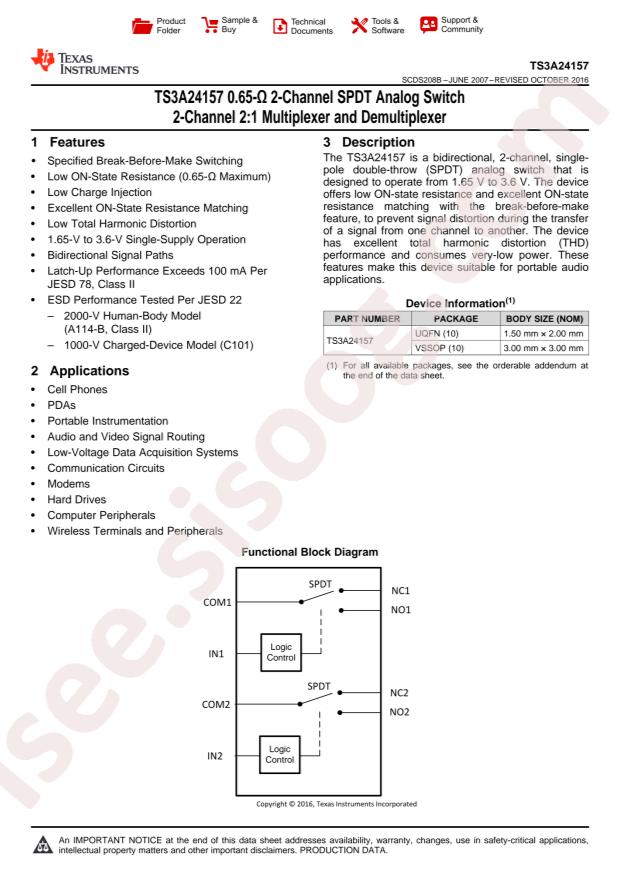

دیتاشیت TS3A24157DGSR
مشخصات دیتاشیت
| نام دیتاشیت |
TS3A24157
|
| حجم فایل |
1527.235
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
30
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Texas Instruments TS3A24157DGSR
-
Switch Circuit:
-
-
Package:
MSOP-10
-
Manufacturer:
Texas Instruments
-
Channel Capacitance (CS(off), CD(off)):
50pF
-
Channel-to-Channel Matching (ΔRon):
50mOhm
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Packaging:
Cut Tape (CT)
-
Multiplexer/Demultiplexer Circuit:
2:1
-
-3db Bandwidth:
50MHz
-
Charge Injection:
8.75pC
-
Current - Leakage (IS(off)) (Max):
50nA
-
On-State Resistance (Max):
600mOhm
-
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
-
Voltage - Supply, Single (V+):
1.65V ~ 3.6V
-
Switch Time (Ton, Toff) (Max):
35ns, 25ns
-
Supplier Device Package:
10-VSSOP
-
Mounting Type:
Surface Mount
-
Base Part Number:
TS3A24
-
Voltage - Supply, Dual (V±):
-
-
Number of Circuits:
2
-
Crosstalk:
-72dB @ 1MHz
-
Part Status:
Active
-
Series:
-
-
detail:
2 Circuit IC Switch 2:1 600mOhm 10-VSSOP
