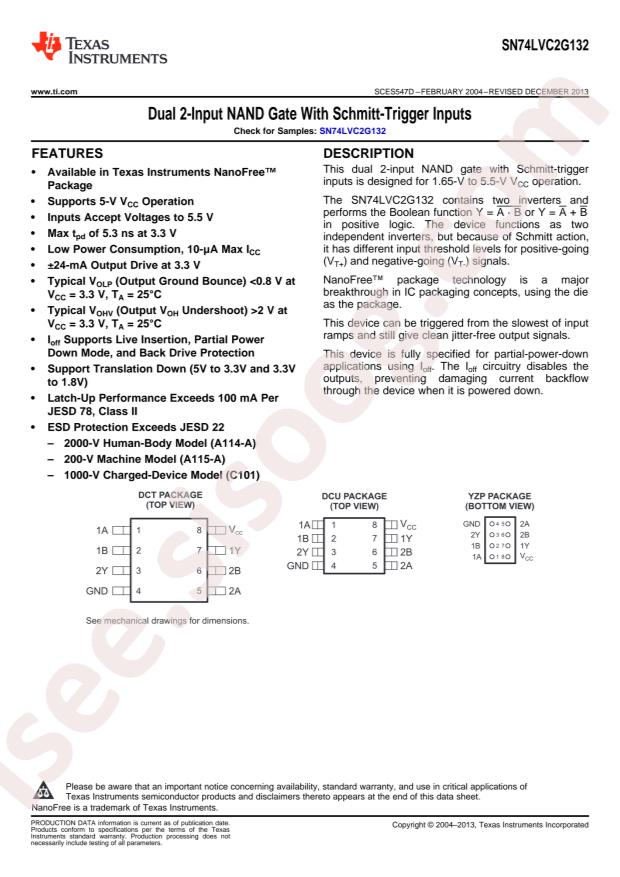

SN74LVC2G132DCUR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74LVC2G132DCUR
|
|
حجم فایل
|
87.883
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Series:
74LVC
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74LVC2G132DCUR
-
Sink Current:
32mA
-
Source Current:
32mA
-
Supply Voltage:
1.65V~5.5V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
2
-
Low Level Range (VIL):
0.39V~1.87V
-
Operating Temperature:
-40°C~+125°C
-
High Level Range (VIH):
1.16V~3.33V
-
Propagation Delay Time:
5ns@5V,50pF
-
Quiescent Current (Max):
10uA
-
Package:
US-8
-
Manufacturer:
Texas Instruments
-
Packaging:
Cut Tape (CT)
-
Max Propagation Delay @ V, Max CL:
5ns @ 5V, 50pF
-
Package / Case:
8-VFSOP (0.091", 2.30mm Width)
-
Voltage - Supply:
1.65V ~ 5.5V
-
Base Part Number:
SN74LVC2G
-
Logic Level - Low:
0.39V ~ 1.87V
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-VSSOP
-
Current - Quiescent (Max):
10µA
-
Logic Level - High:
1.16V ~ 3.33V
-
Logic Type:
NAND Gate
-
Number of Circuits:
2
-
Features:
Schmitt Trigger
-
Current - Output High, Low:
32mA, 32mA
-
Part Status:
Active
-
Number of Inputs:
2
-
detail:
NAND Gate IC 2 Channel Schmitt Trigger 8-VSSOP
