TPD2EUSB30DRTR دیتاشیت

TPD2EUSB30DRTR

مشخصات دیتاشیت

نام دیتاشیت TPD2EUSB30DRTR
حجم فایل 85.18 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

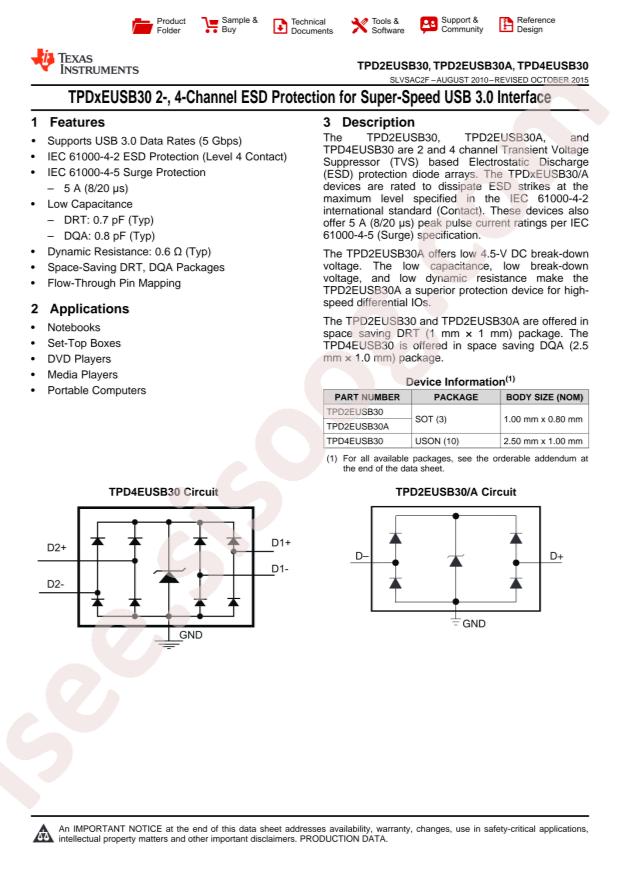

دانلود دیتاشیت TPD2EUSB30DRTR

دانلود دیتاشیت

سایر مستندات

TPD2EUSB30 23 pages

TPD2EUSB30DRTR 6 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: Leiditech TPD2EUSB30DRTR
  • Package: SOT-723
  • Manufacturer: Leiditech
  • Polarity: Unidirectional
  • Clamping Voltage@Ipp: 8V
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Breakdown Voltage (VBR): 7V
  • Peak Pulse Power(Ppp)@8/20us: 45W
  • Junction Capacitance(Cj)@1MHz: -
  • Peak Pulse Current(Ipp)@8/20us: 1A
  • Reverse Stand-Off Voltage (Vrwm): 5.5V
  • Type: Steering (Rail to Rail)
  • Packaging: Cut Tape (CT)
  • Current - Peak Pulse (10/1000µs): 1A (8/20µs)
  • Base Part Number: TPD2E
  • Package / Case: SOT-3
  • Voltage - Breakdown (Min): 7V
  • Voltage - Clamping (Max) @ Ipp: 8V
  • Series: -
  • Mounting Type: Surface Mount
  • Capacitance @ Frequency: -
  • Supplier Device Package: SOT-3
  • Unidirectional Channels: 2
  • Applications: General Purpose
  • Part Status: Active
  • Power Line Protection: Yes
  • Power - Peak Pulse: 45W
  • Voltage - Reverse Standoff (Typ): 5.5V (Max)
  • detail: 8V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-3
