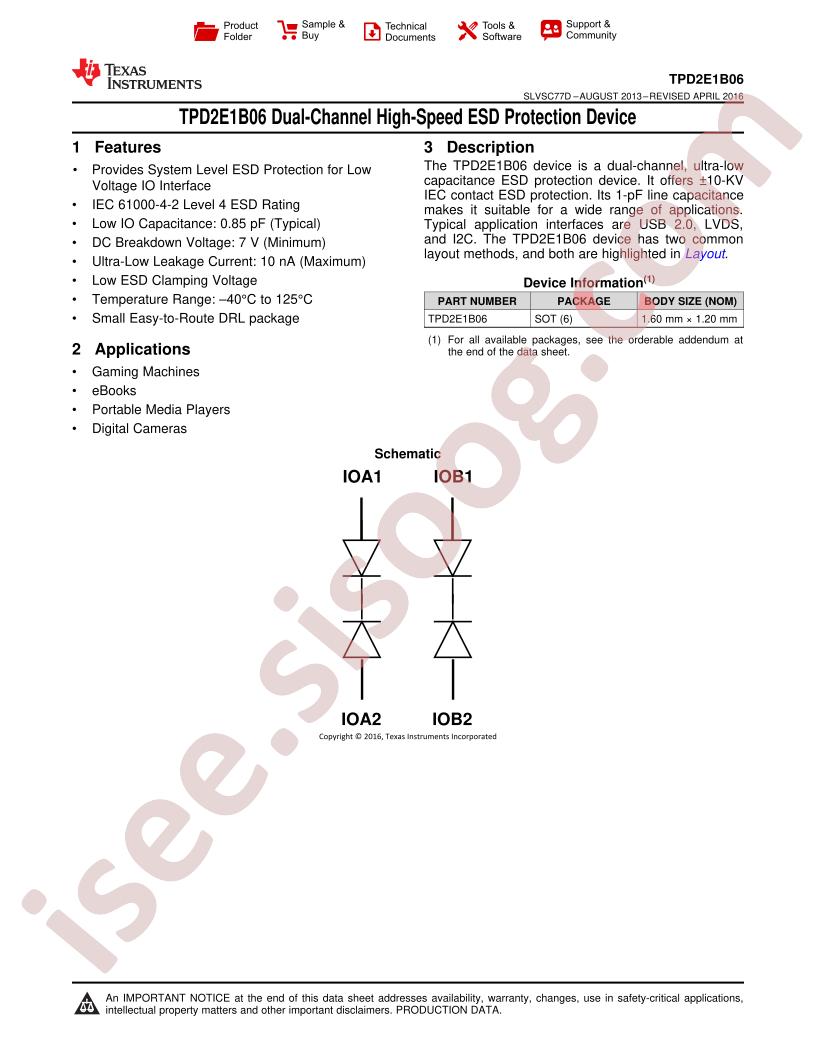

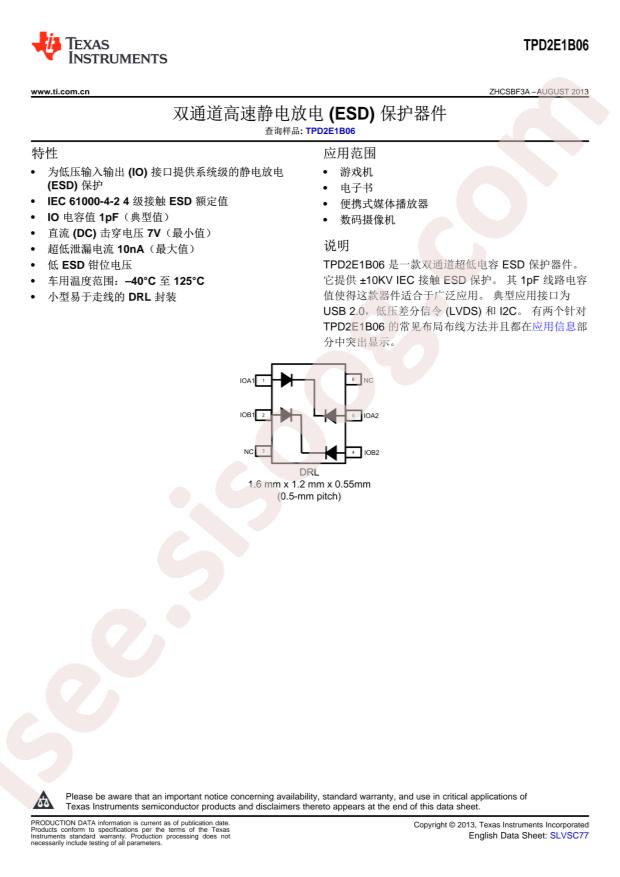

دیتاشیت TPD2E1B06DRLR
مشخصات دیتاشیت
| نام دیتاشیت |
TPD2E1B06
|
| حجم فایل |
1189.975
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
18
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
Texas Instruments TPD2E1B06DRLR
-
Clamping Voltage@Ipp:
15V
-
Operating Temperature:
-40°C~+125°C@(Ta)
-
Breakdown Voltage (VBR):
7V
-
Peak Pulse Power(Ppp)@8/20us:
35W
-
Junction Capacitance(Cj)@1MHz:
-
-
Peak Pulse Current(Ipp)@8/20us:
2.5A@(8/20us)
-
Reverse Stand-Off Voltage (Vrwm):
5.5V
-
Package:
SOT-666-6
-
Manufacturer:
Texas Instruments
-
Type:
Steering (Rail to Rail)
-
Packaging:
Cut Tape (CT)
-
Current - Peak Pulse (10/1000µs):
2.5A (8/20µs)
-
Base Part Number:
TPD2E
-
Mounting Type:
Surface Mount
-
Voltage - Breakdown (Min):
7V
-
Voltage - Clamping (Max) @ Ipp:
15V (Typ)
-
Package / Case:
SOT-563, SOT-666
-
Series:
-
-
Bidirectional Channels:
2
-
Capacitance @ Frequency:
-
-
Supplier Device Package:
6-SOT
-
Applications:
General Purpose
-
Part Status:
Active
-
Power Line Protection:
No
-
Power - Peak Pulse:
35W
-
Voltage - Reverse Standoff (Typ):
5.5V (Max)
-
detail:
15V (Typ) Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 6-SOT
