- دیتاشیت SN74LVC1G123DCTR
SN74LVC1G123DCTR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVC1G123DCTR |
|---|---|
| حجم فایل | 113.289 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت SN74LVC1G123DCTR |
دانلود دیتاشیت |
|---|
سایر مستندات

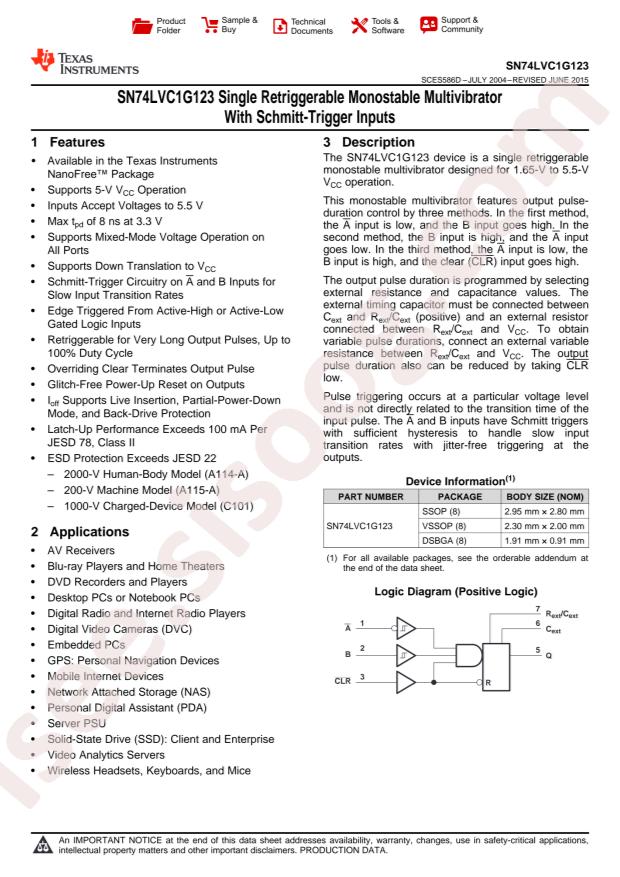

SN74LVC1G123 Datasheet 28 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Monostable Multivibrators
- Datasheet: Texas Instruments SN74LVC1G123DCTR
- Input Type: Schmitt Trigger
- Logic Family: 74LVC
- Sink Current: 32mA
- Source Current: 32mA
- Supply Voltage: 1.65V~5.5V
- Logic Gate Type: Monostable
- Propagation Delay: 18.5ns
- Number Of Channels: 1
- OperatingTemperature: -40°C~+125°C
- Package: SM-8
- Manufacturer: Texas Instruments
- Packaging: Cut Tape (CT)
- Schmitt Trigger Input: Yes
- Base Part Number: SN74LVC1G
- Package / Case: 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
- Operating Temperature: -40°C ~ 125°C
- Voltage - Supply: 1.65V ~ 5.5V
- Series: 74LVC
- Supplier Device Package: SM8 (SSOP)
- Logic Type: Monostable
- Mounting Type: Surface Mount
- Independent Circuits: 1
- Current - Output High, Low: 32mA, 32mA
- Part Status: Active
- detail: Monostable Multivibrator 18.5ns SM8 (SSOP)
