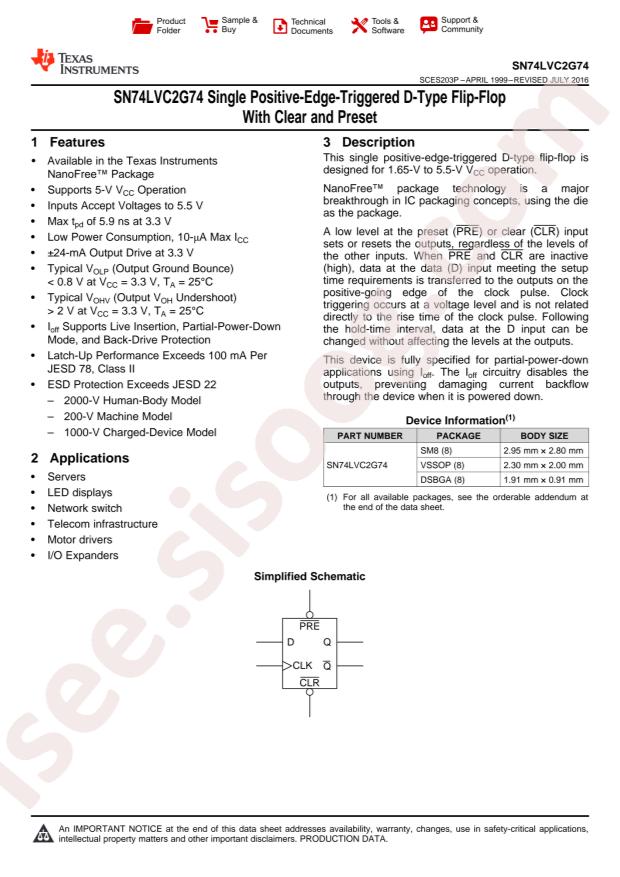

دیتاشیت SN74LVC2G74DCTR
مشخصات دیتاشیت
| نام دیتاشیت |
SN74LVC2G74
|
| حجم فایل |
1107.385
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
25
|
مشخصات
-
RoHS:
true
-
Type:
D-Type
-
Series:
74LVC
-
Category:
Logic ICs/Flip Flops
-
Function:
置位和复位
-
Datasheet:
Texas Instruments SN74LVC2G74DCTR
-
Output Type:
互补型
-
Sink Current:
32mA
-
Trigger Type:
上升沿
-
Source Current:
32mA
-
Supply Voltage:
1.65V~5.5V
-
Clock Frequency:
200MHz
-
Input Capacitance:
5pF
-
Number of Elements:
1
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Iq):
10uA
-
Maximum Propagation Delay:
4.4ns@5V,50pF
-
Number of Bits per Element:
1
-
Package:
SM8-8
-
Manufacturer:
Texas Instruments
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
SN74LVC2G
-
Voltage - Supply:
1.65V ~ 5.5V
-
Current - Quiescent (Iq):
10µA
-
Mounting Type:
Surface Mount
-
Max Propagation Delay @ V, Max CL:
4.4ns @ 5V, 50pF
-
Current - Output High, Low:
32mA, 32mA
-
Supplier Device Package:
SM8 (SSOP)
-
Part Status:
Active
-
Package / Case:
8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
-
detail:
Flip Flop 1 Element D-Type 1 Bit Positive Edge 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
