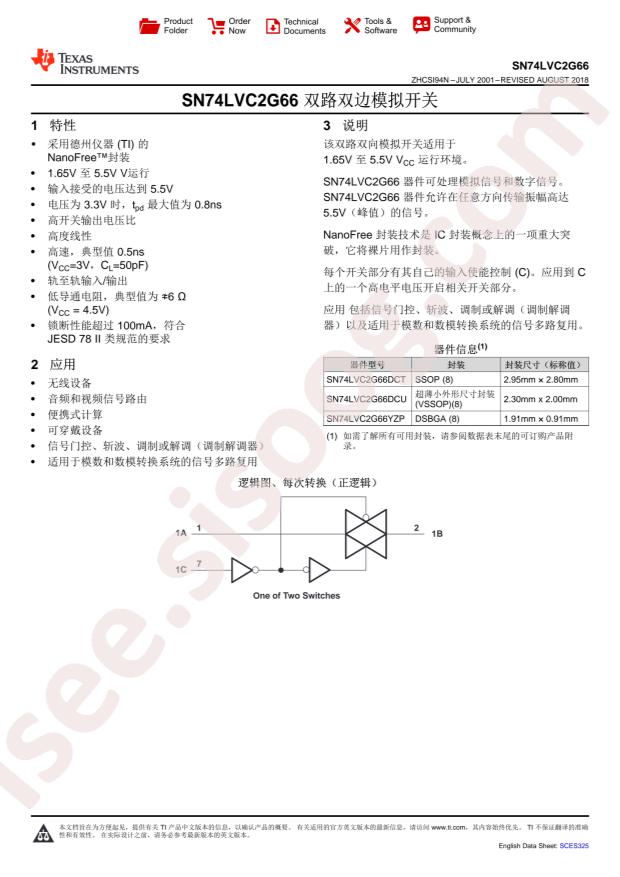

دیتاشیت SN74LVC2G66DCTR
مشخصات دیتاشیت
| نام دیتاشیت |
SN74LVC2G66
|
| حجم فایل |
1182.227
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
29
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Texas Instruments SN74LVC2G66DCTR
-
Turn-on time:
3.9ns
-
Turn-off time:
6.3ns
-
Supply Voltage:
1.65V~5.5V
-
Switch Circuit:
SPST(SPST)-Normal Open
-
Number of Channels:
2
-
On-State Resistance (Max):
10Ω
-
Package:
SSOP-8
-
Manufacturer:
Texas Instruments
-
Channel Capacitance (CS(off), CD(off)):
6pF
-
Channel-to-Channel Matching (ΔRon):
2Ohm (Max)
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Packaging:
Cut Tape (CT)
-
Multiplexer/Demultiplexer Circuit:
1:1
-
-3db Bandwidth:
300MHz
-
Charge Injection:
-
-
Current - Leakage (IS(off)) (Max):
100nA
-
Package / Case:
8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
-
Voltage - Supply, Single (V+):
1.65V ~ 5.5V
-
Switch Time (Ton, Toff) (Max):
3.9ns, 6.3ns
-
Supplier Device Package:
SM8 (SSOP)
-
Mounting Type:
Surface Mount
-
Base Part Number:
SN74LVC2G
-
Voltage - Supply, Dual (V±):
-
-
Number of Circuits:
2
-
Crosstalk:
-58dB @ 1MHz
-
Part Status:
Active
-
Series:
-
-
detail:
2 Circuit IC Switch 1:1 10Ohm SM8 (SSOP)
