TPS22913CYZVR دیتاشیت

TPS22913CYZVR

مشخصات دیتاشیت

نام دیتاشیت TPS22913CYZVR
حجم فایل 92.248 کیلوبایت
نوع فایل pdf
تعداد صفحات 37

دانلود دیتاشیت TPS22913CYZVR

دانلود دیتاشیت

سایر مستندات

TPS22910A, 12C, 13B, 13C 37 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches

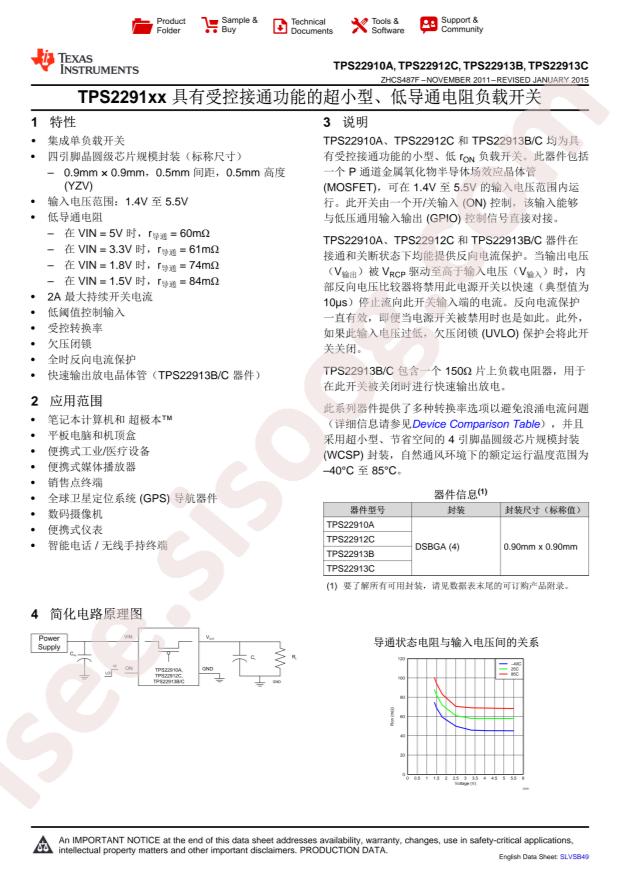

  • Datasheet: Texas Instruments TPS22913CYZVR
  • Input Voltage: 1.4V~5.5V
  • Output Current: 2A
  • Number of Outputs: 1
  • Resistor On-State: 60mΩ
  • Operating Temperature -: -40°C~+85°C
  • Package: BGA-4
  • Manufacturer: Texas Instruments
  • Interface: On/Off
  • Current - Output (Max): 2A
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Packaging: Cut Tape (CT)
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Features: Load Discharge, Slew Rate Controlled
  • Fault Protection: Reverse Current, UVLO
  • Package / Case: 4-XFBGA, DSBGA
  • Switch Type: General Purpose
  • Voltage - Load: 1.4V ~ 5.5V
  • Rds On (Typ): 60mOhm
  • Supplier Device Package: 4-DSBGA (0.88x0.88)
  • Mounting Type: Surface Mount
  • Input Type: Non-Inverting
  • Base Part Number: TPS229
  • Ratio - Input:Output: 1:1
  • Output Type: P-Channel
  • Part Status: Active
  • Series: -
  • Output Configuration: High Side
  • detail: Power Switch/Driver 1:1 P-Channel 2A 4-DSBGA (0.88x0.88)
