دیتاشیت CD4049UBDR

CD4049UB, CD4050B Datasheet

مشخصات دیتاشیت

نام دیتاشیت CD4049UB, CD4050B Datasheet
حجم فایل 2386.895 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

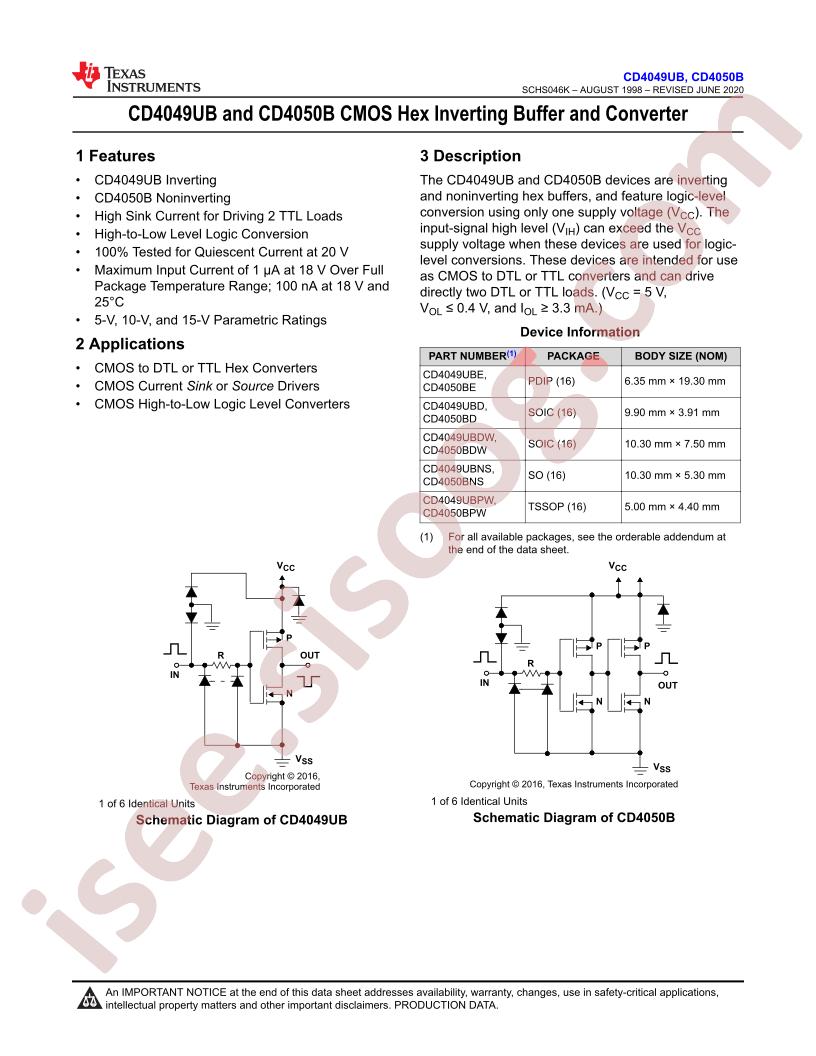

دانلود دیتاشیت CD4049UB, CD4050B Datasheet

CD4049UB, CD4050B Datasheet Datasheet

مشخصات

  • RoHS: true
  • Series: 4000B
  • Category: Logic ICs/Inverters

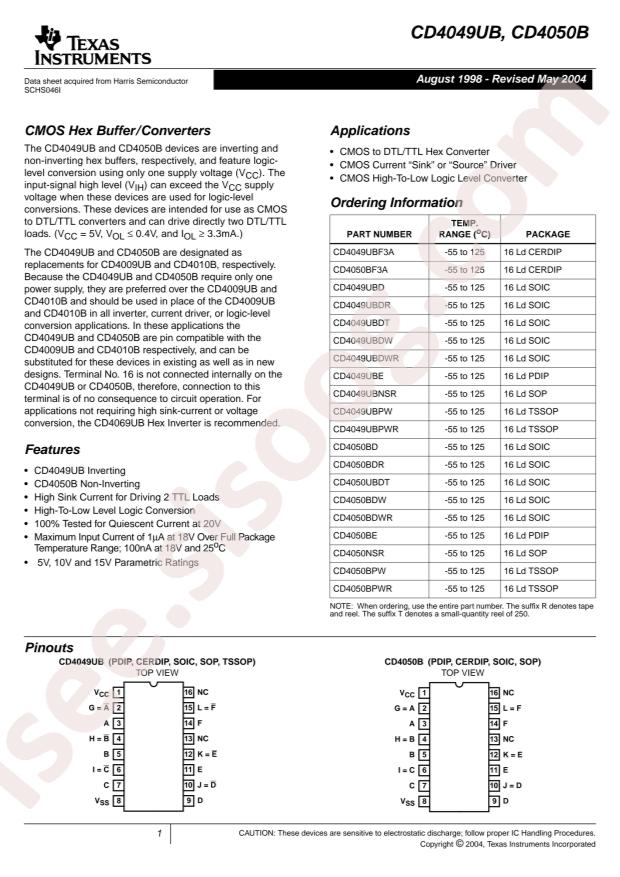

  • Datasheet: Texas Instruments CD4049UBDR
  • Sink Current: 24mA
  • Source Current: 4.3mA
  • Number of Inputs: 1
  • Number of Circuits: 6
  • Supply Current (Max): 4uA
  • Low level range (VIL): 1V~2.5V
  • Max Propagation Delay: 50ns@15V,50pF
  • Operating Temperature: -55°C~+125°C
  • High level range (VIH): 4V~12.5V
  • Supply Voltage(Single): 3V~18V
  • Package: SOP-16
  • Manufacturer: Texas Instruments
  • Supplier Device Package: 16-SOIC
  • Base Part Number: CD4049
  • Logic Type: Inverter
  • Packaging: Cut Tape (CT)
  • Current - Output High, Low: 4.3mA, 24mA
  • Max Propagation Delay @ V, Max CL: 50ns @ 15V, 50pF
  • Features: -
  • Logic Level - High: 4V ~ 12.5V
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Current - Quiescent (Max): 4µA
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Voltage - Supply: 3V ~ 18V
  • Logic Level - Low: 1V ~ 2.5V
  • detail: Inverter IC 6 Channel 16-SOIC
