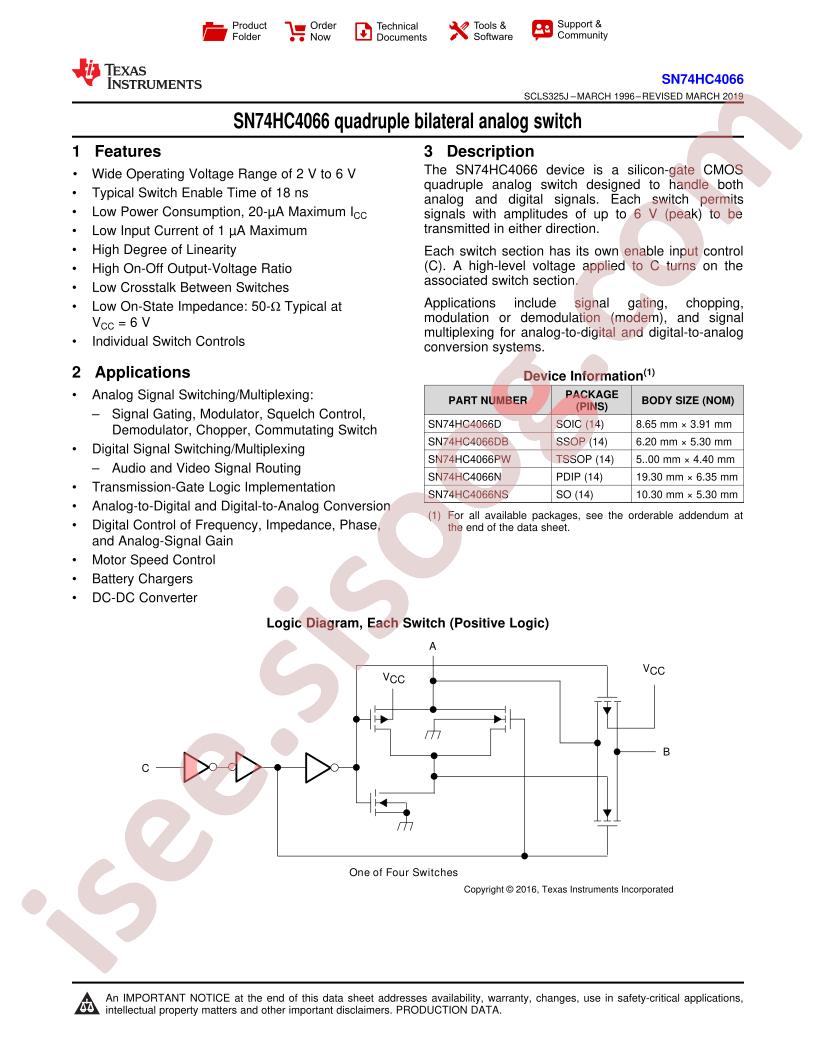

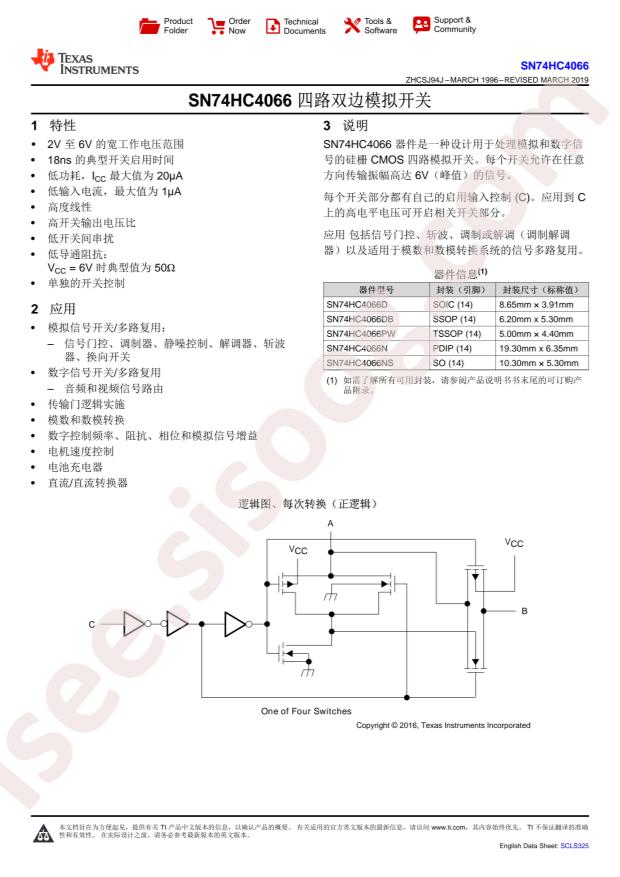

دیتاشیت SN74HC4066DR
مشخصات دیتاشیت
| نام دیتاشیت |
SN74HC4066
|
| حجم فایل |
1150.466
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
29
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Texas Instruments SN74HC4066DR
-
Turn-on time:
31ns
-
Turn-off time:
34ns
-
Supply Voltage:
2V~6V
-
Switch Circuit:
SPST(SPST)-Normal Open
-
Number of Channels:
4
-
On-State Resistance (Max):
30Ω
-
Package:
SOP-14
-
Manufacturer:
Texas Instruments
-
Channel Capacitance (CS(off), CD(off)):
0.5pF, 9pF
-
Channel-to-Channel Matching (ΔRon):
-
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Packaging:
Cut Tape (CT)
-
Multiplexer/Demultiplexer Circuit:
1:1
-
-3db Bandwidth:
30MHz
-
Charge Injection:
-
-
Current - Leakage (IS(off)) (Max):
100nA
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Voltage - Supply, Single (V+):
2V ~ 6V
-
Switch Time (Ton, Toff) (Max):
31ns, 34ns
-
Supplier Device Package:
14-SOIC
-
Mounting Type:
Surface Mount
-
Base Part Number:
SN74HC4
-
Voltage - Supply, Dual (V±):
-
-
Number of Circuits:
4
-
Crosstalk:
-45dB @ 1MHz
-
Part Status:
Active
-
Series:
-
-
detail:
4 Circuit IC Switch 1:1 30Ohm (Typ) 14-SOIC
