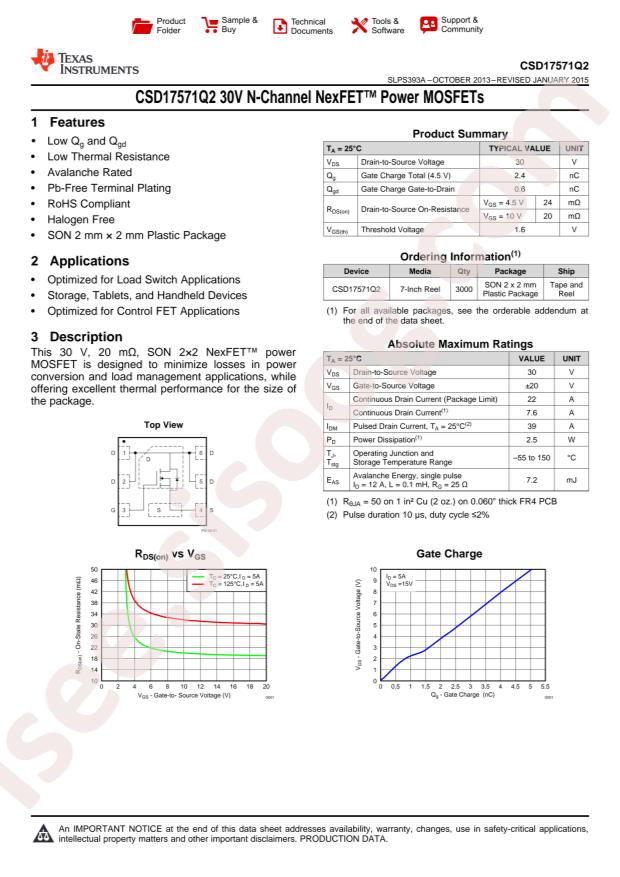

CSD17571Q2 دیتاشیت

CSD17571Q2

مشخصات دیتاشیت

نام دیتاشیت CSD17571Q2
حجم فایل 89.075 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

مشاهده دیتاشیت CSD17571Q2

دانلود دیتاشیت

سایر مستندات

CSD17571Q2 12 pages

CSD17571Q2 11 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD17571Q2
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 2.5W
  • Total Gate Charge (Qg@Vgs): 3.1nC@4.5V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 468pF@15V
  • Continuous Drain Current (Id): 22A
  • Gate Threshold Voltage (Vgs(th)@Id): 2V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 29mΩ@5A,4.5V
  • Package: WSON-6(2x2)
  • Manufacturer: Texas Instruments
  • Power Dissipation (Max): 2.5W (Ta)
  • Input Capacitance (Ciss) (Max) @ Vds: 468pF @ 15V
  • Vgs (Max): ±20V
  • Supplier Device Package: 6-SON (2x2)
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Base Part Number: CSD175
  • Vgs(th) (Max) @ Id: 2V @ 250µA
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • FET Feature: -
  • Package / Case: 6-WDFN Exposed Pad
  • Part Status: Active
  • Series: NexFET™
  • Gate Charge (Qg) (Max) @ Vgs: 3.1nC @ 4.5V
  • Rds On (Max) @ Id, Vgs: 29mOhm @ 5A, 4.5V
  • Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
  • Drain to Source Voltage (Vdss): 30V
  • detail: N-Channel 30V 22A (Ta) 2.5W (Ta) Surface Mount 6-SON (2x2)
