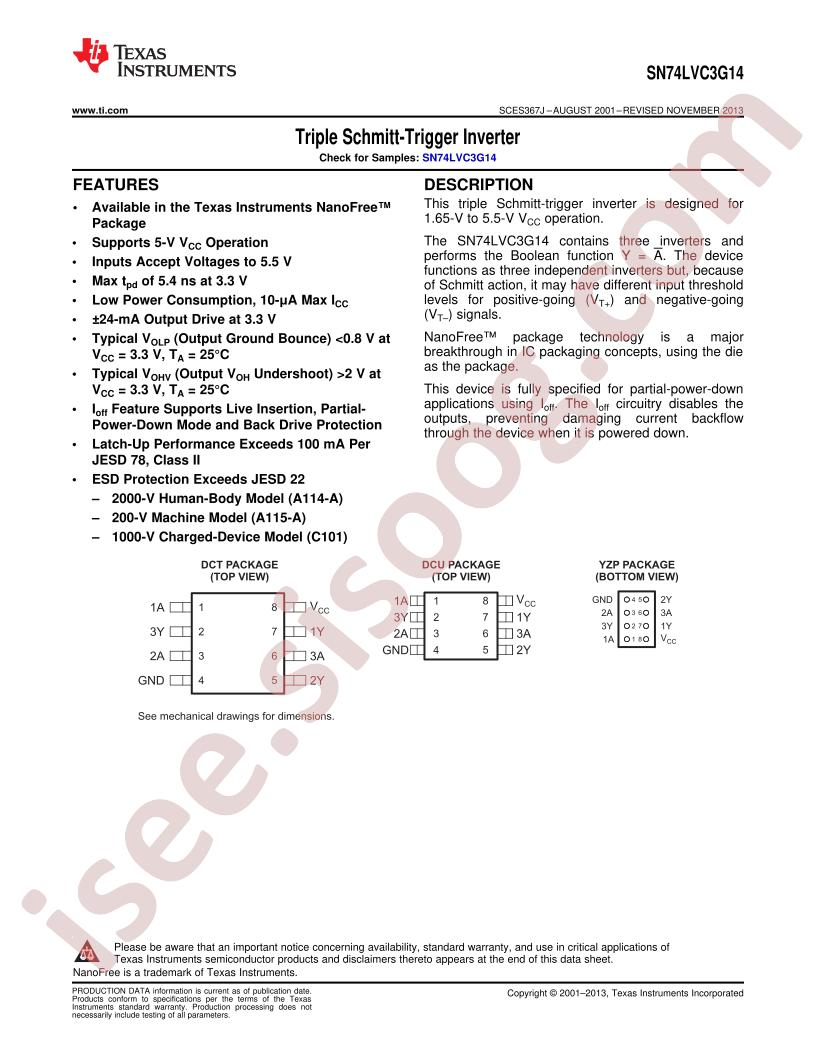

دیتاشیت SN74LVC3G14DCTR
مشخصات دیتاشیت
| نام دیتاشیت |
SN74LVC3G14
|
| حجم فایل |
1006.539
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
19
|
مشخصات
-
RoHS:
true
-
Series:
74LVC
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments SN74LVC3G14DCTR
-
Input Type:
Schmitt Trigger
-
Sink Current:
32mA
-
Source Current:
32mA
-
Number of Inputs:
3
-
Number of Circuits:
3
-
Supply Current (Max):
10uA
-
Low level range (VIL):
0.3V~1.4V
-
Max Propagation Delay:
4.3ns@5V,50pF
-
Operating Temperature:
-40°C~+125°C
-
High level range (VIH):
1.4V~3.7V
-
Supply Voltage(Single):
1.65V~5.5V
-
Package:
SM-8
-
Manufacturer:
Texas Instruments
-
Supplier Device Package:
SM8 (SSOP)
-
Base Part Number:
SN74LVC3G
-
Logic Type:
Inverter
-
Packaging:
Cut Tape (CT)
-
Current - Output High, Low:
32mA, 32mA
-
Max Propagation Delay @ V, Max CL:
4.3ns @ 5V, 50pF
-
Features:
Schmitt Trigger
-
Logic Level - High:
1.4V ~ 3.7V
-
Package / Case:
8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
-
Current - Quiescent (Max):
10µA
-
Mounting Type:
Surface Mount
-
Part Status:
Active
-
Voltage - Supply:
1.65V ~ 5.5V
-
Logic Level - Low:
0.3V ~ 1.4V
-
detail:
Inverter IC 3 Channel Schmitt Trigger SM8 (SSOP)
