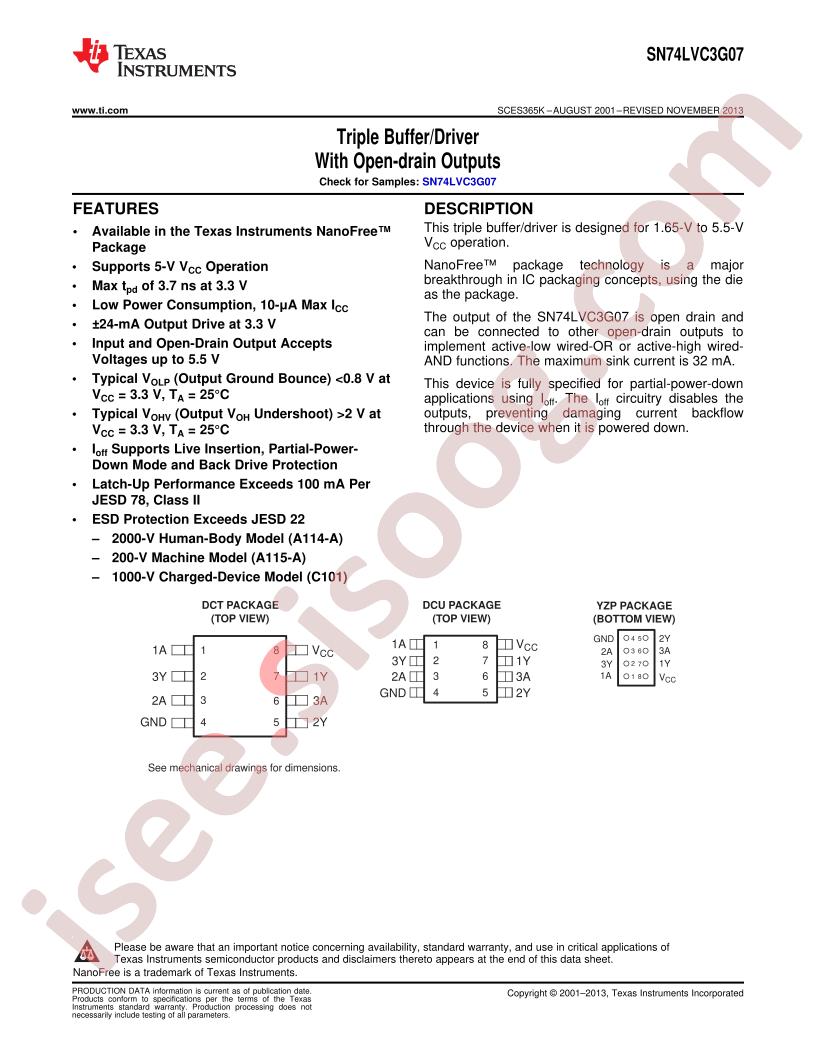

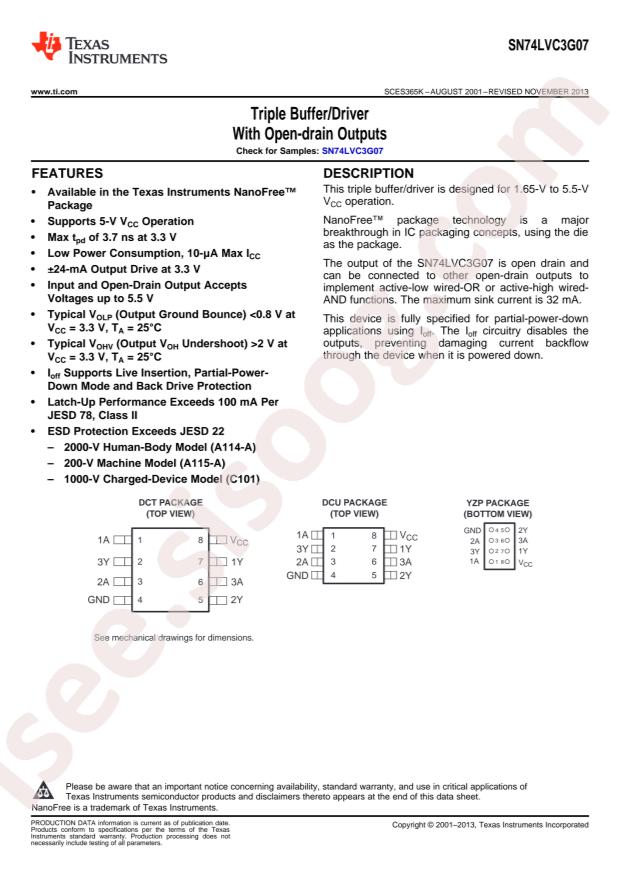

دیتاشیت SN74LVC3G07DCTR
مشخصات دیتاشیت
| نام دیتاشیت |
SN74LVC3G07
|
| حجم فایل |
989.06
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
18
|
مشخصات
-
RoHS:
true
-
Category:
Logic ICs/Buffer/Driver/Transceiver
-
Datasheet:
Texas Instruments SN74LVC3G07DCTR
-
Input type:
-
-
output type:
Open Drain
-
Sink Current:
32mA
-
Source Current:
-
-
Supply Voltage:
1.65V~5.5V
-
Operating Temperature:
-40°C~+125°C
-
Package:
MSOP-8
-
Manufacturer:
Texas Instruments
-
Logic Type:
Buffer, Non-Inverting
-
Current - Output High, Low:
-, 32mA
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Number of Bits per Element:
1
-
Base Part Number:
SN74LVC3G
-
Number of Elements:
3
-
Package / Case:
8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
-
Part Status:
Active
-
Series:
74LVC
-
Voltage - Supply:
1.65V ~ 5.5V
-
Supplier Device Package:
SM8 (SSOP)
-
detail:
Buffer, Non-Inverting 3 Element 1 Bit per Element Open Drain Output SM8 (SSOP)
