دیتاشیت UCC27511AQDBVRQ1

UCC27511A-Q1

مشخصات دیتاشیت

نام دیتاشیت UCC27511A-Q1
حجم فایل 1473.851 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

دانلود دیتاشیت UCC27511A-Q1

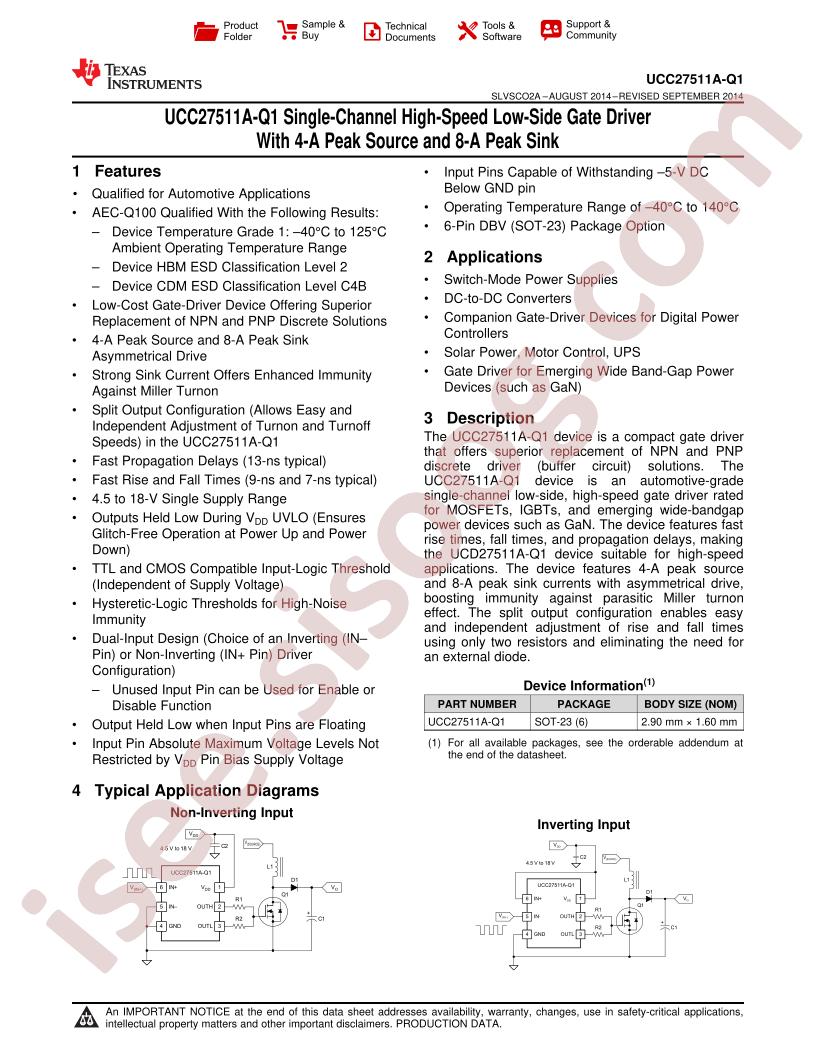

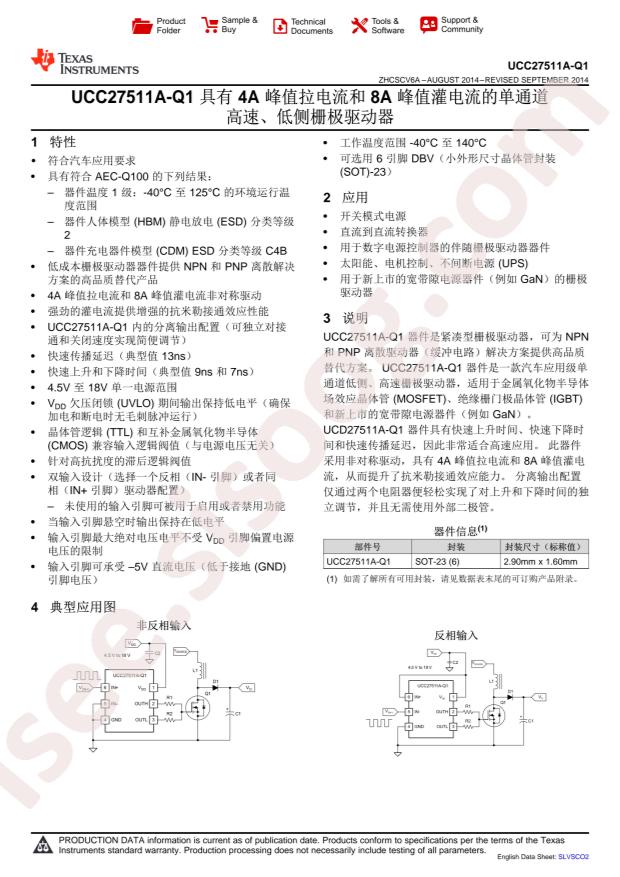

UCC27511A-Q1 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27511AQDBVRQ1
  • Fall Time: 7ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 8ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Peak Output Current(sink): 8A
  • Peak Output Current(source): 4A
  • Package: SOT-23-6
  • Manufacturer: Texas Instruments
  • Base Part Number: UCC275
  • Supplier Device Package: SOT-23-6
  • Logic Voltage - VIL, VIH: 1V, 2.4V
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Channel Type: Single
  • Current - Peak Output (Source, Sink): 4A, 8A
  • Rise / Fall Time (Typ): 8ns, 7ns
  • Gate Type: IGBT, N-Channel MOSFET
  • Package / Case: SOT-23-6
  • Part Status: Active
  • Series: Automotive, AEC-Q100
  • Input Type: Inverting, Non-Inverting
  • Voltage - Supply: 4.5V ~ 18V
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting SOT-23-6
