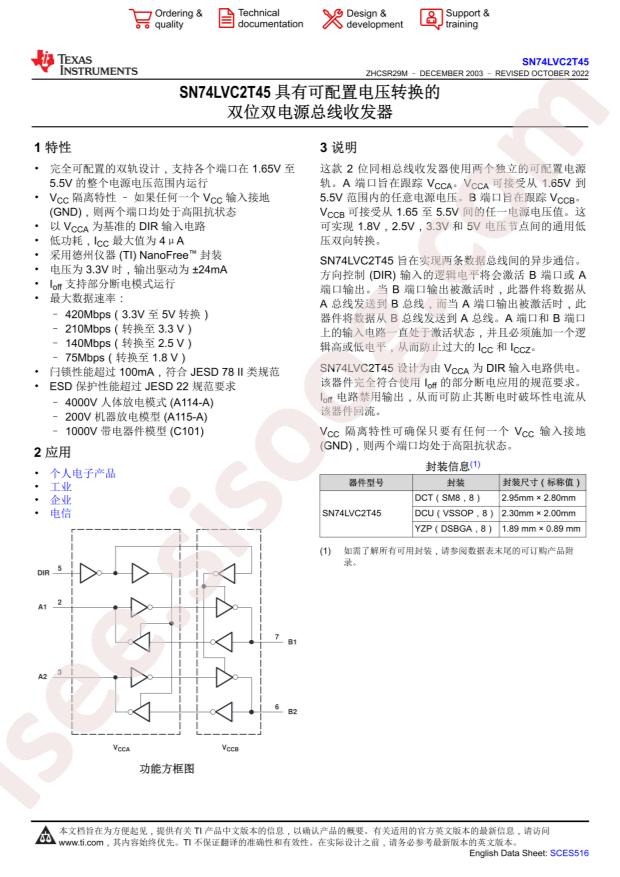

دیتاشیت SN74LVC2T45DCUT

SN74LVC2T45DCUT

مشخصات دیتاشیت

نام دیتاشیت SN74LVC2T45DCUT
حجم فایل 89.756 کیلوبایت
نوع فایل pdf
تعداد صفحات 36

SN74LVC2T45DCUT

دانلود دیتاشیت

سایر مستندات

Logic Guide 20 pages

SN74LVC2T45 Datasheet 31 pages

Signal Switch Data Book 1267 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Translators / Level Shifters
  • Features: -
  • Data Rate: 420Mbps
  • Datasheet: Texas Instruments SN74LVC2T45DCUT
  • Output Type: Tri-State;Unidirectional Voltage Level Translators
  • Channel Type: Bi-Directional
  • Input Signal: -
  • Output Signal: -
  • Number of Circuits: 1
  • Channels per Circuit: 2
  • Operating Temperature: -40°C~+85°C
  • Supply Voltage (VCCA): 1.65V~5.5V
  • Supply Voltage (VCCB): 1.65V~5.5V
  • Package: VSSOP-8
  • Manufacturer: Texas Instruments
  • Base Part Number: SN74LVC2T
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Translator Type: Voltage Level
  • Package / Case: 8-VFSOP (0.091", 2.30mm Width)
  • Part Status: Active
  • Series: 74LVC
  • Voltage - VCCB: 1.65V ~ 5.5V
  • Voltage - VCCA: 1.65V ~ 5.5V
  • Supplier Device Package: 8-VSSOP
  • detail: Voltage Level Translator Bidirectional 1 Circuit 2 Channel 420Mbps 8-VSSOP
