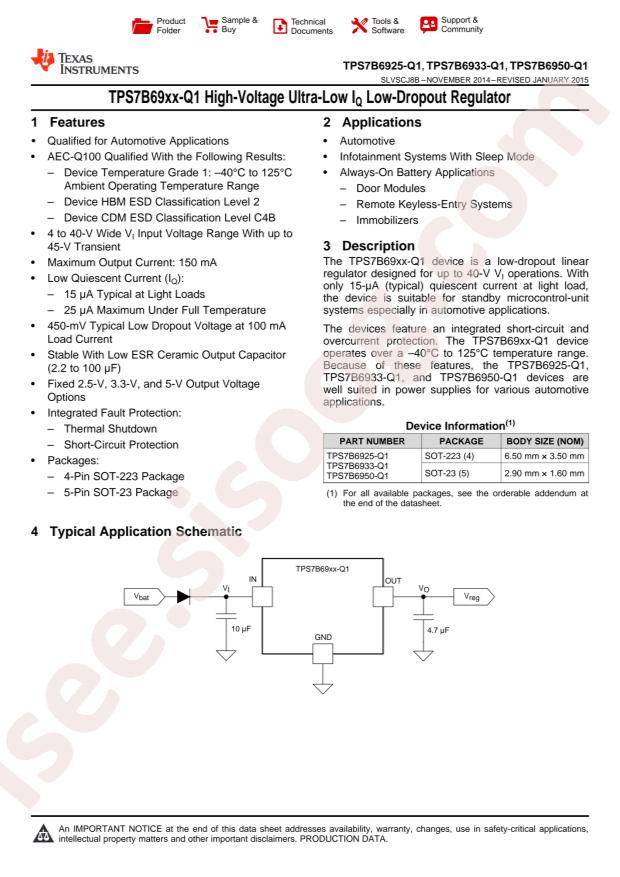

TPS7B6933QDBVRQ1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS7B6933QDBVRQ1
|
|
حجم فایل
|
90.314
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
25
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS7B6933QDBVRQ1
-
Output Current:
150mA
-
Output Voltage:
3.3V
-
Dropout Voltage:
0.8V@(100mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
40V
-
Operating Temperature:
-40°C~+150°C
-
Quiescent Current (Ground Current):
25uA
-
Power Supply Rejection Ratio (PSRR):
60dB@(100Hz)
-
Package:
SOT-23-5
-
Manufacturer:
Texas Instruments
-
Number of Regulators:
1
-
Current - Quiescent (Iq):
25µA
-
Base Part Number:
TPS7B6
-
Voltage - Input (Max):
40V
-
Supplier Device Package:
SOT-23-5
-
Voltage - Output (Max):
-
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Protection Features:
Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
-
Control Features:
-
-
Voltage - Output (Min/Fixed):
3.3V
-
Output Type:
Fixed
-
Voltage Dropout (Max):
0.8V @ 100mA
-
Part Status:
Active
-
Series:
Automotive, AEC-Q100
-
Current - Output:
150mA
-
PSRR:
60dB (100Hz)
-
Output Configuration:
Positive
-
Package / Case:
SC-74A, SOT-753
-
detail:
Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
