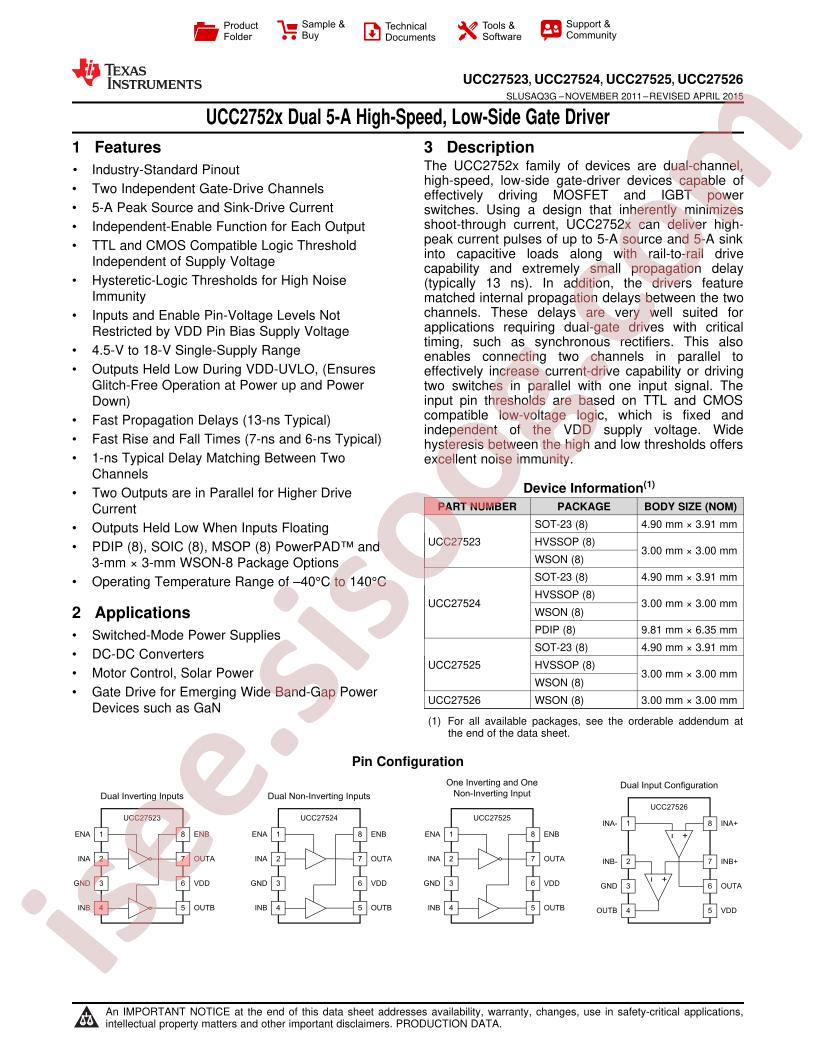

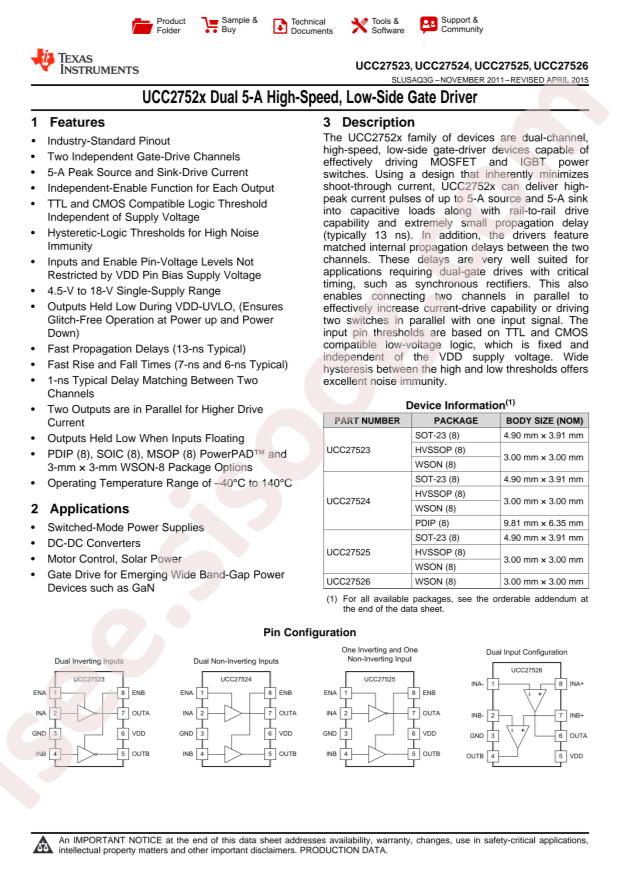

دیتاشیت UCC27524DR

UCC2752x

مشخصات دیتاشیت

نام دیتاشیت UCC2752x
حجم فایل 2285.202 کیلوبایت
نوع فایل pdf
تعداد صفحات 45

دانلود دیتاشیت UCC2752x

UCC2752x Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27524DR
  • Fall Time: 6ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 7ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 2
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+140°C@(Tj)
  • Peak Output Current(sink): 5A
  • Peak Output Current(source): 5A
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Base Part Number: UCC275
  • Supplier Device Package: 8-SOIC
  • Logic Voltage - VIL, VIH: 1V, 2.3V
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Channel Type: Independent
  • Current - Peak Output (Source, Sink): 5A, 5A
  • Rise / Fall Time (Typ): 7ns, 6ns
  • Gate Type: IGBT, N-Channel MOSFET
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Part Status: Active
  • Series: -
  • Input Type: Non-Inverting
  • Voltage - Supply: 4.5V ~ 18V
  • detail: Low-Side Gate Driver IC Non-Inverting 8-SOIC
