دیتاشیت TL972IDR

TL971, TL972, TL974

مشخصات دیتاشیت

نام دیتاشیت TL971, TL972, TL974
حجم فایل 1776.237 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت TL971, TL972, TL974

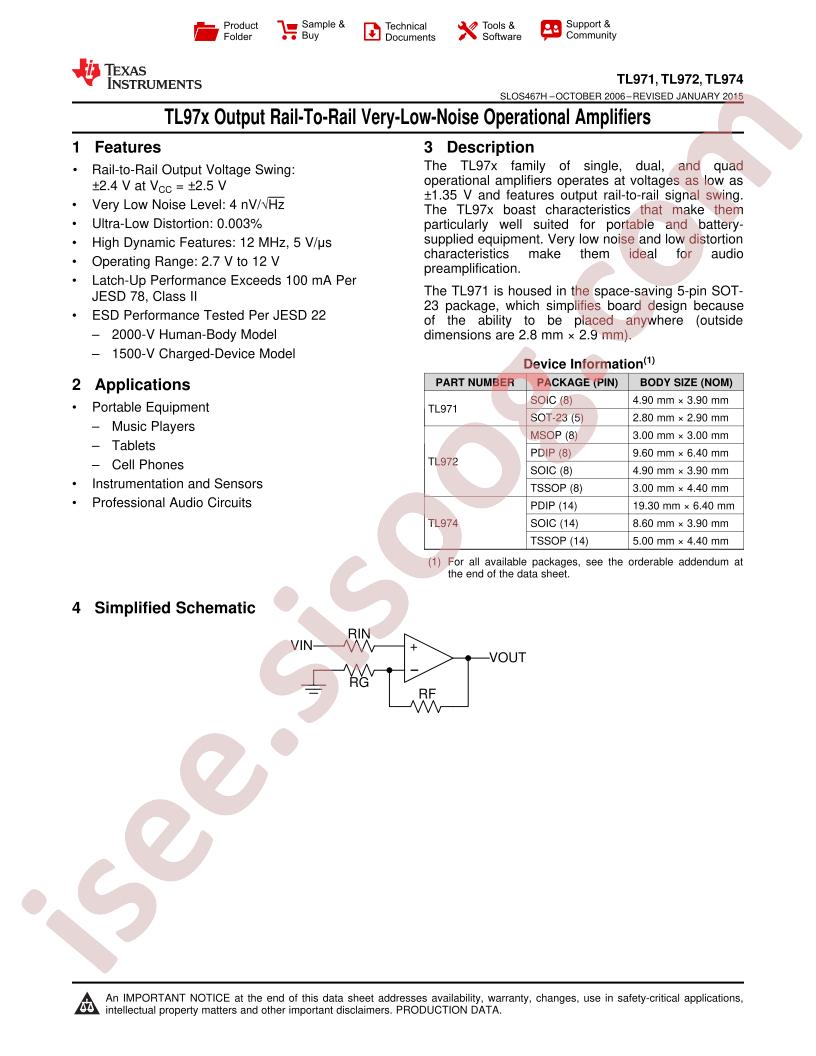

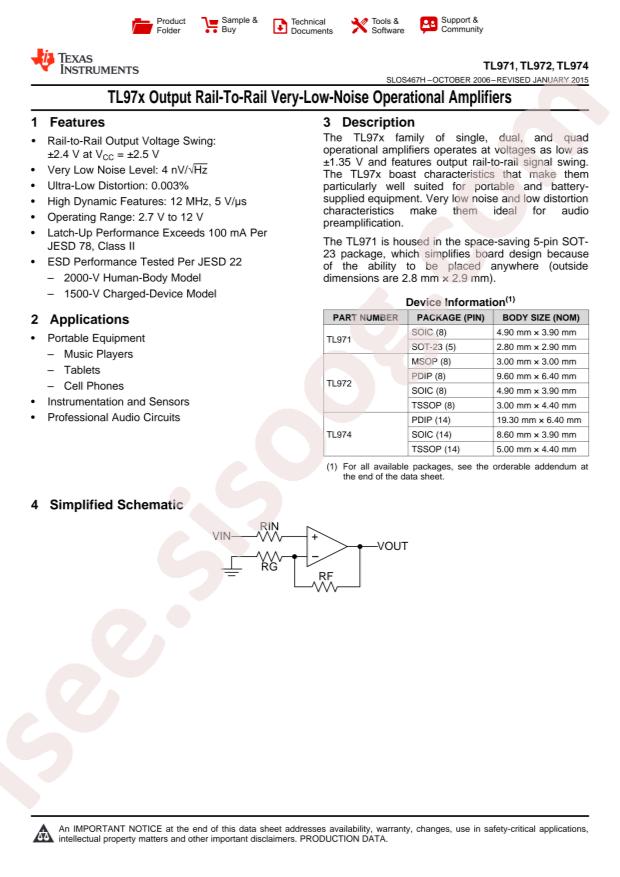

TL971, TL972, TL974 Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Operational Amplifier
  • Datasheet: Texas Instruments TL972IDR
  • Rail to Rail: 轨到轨
  • -3db Bandwidth: -
  • Output Current: 80mA
  • Operating Temperature: -40°C~+125°C
  • Current - Input Bias(Ib): 200nA
  • Gain Bandwidth Product(GBP): 12MHz
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Voltage - Supply, Single/Dual (±): 2.7V ~ 12V, ±1.35V ~ 6V
  • Current - Input Bias: 200nA
  • Supplier Device Package: 8-SOIC
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Base Part Number: TL972
  • Voltage - Input Offset: 1mV
  • Amplifier Type: General Purpose
  • Number of Circuits: 2
  • Gain Bandwidth Product: 12MHz
  • Current - Output / Channel: 80mA
  • Output Type: Rail-to-Rail
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Part Status: Active
  • Series: -
  • Slew Rate: 5V/µs
  • Current - Supply: 2mA
  • detail: General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC
