دیتاشیت TPS22918DBVT

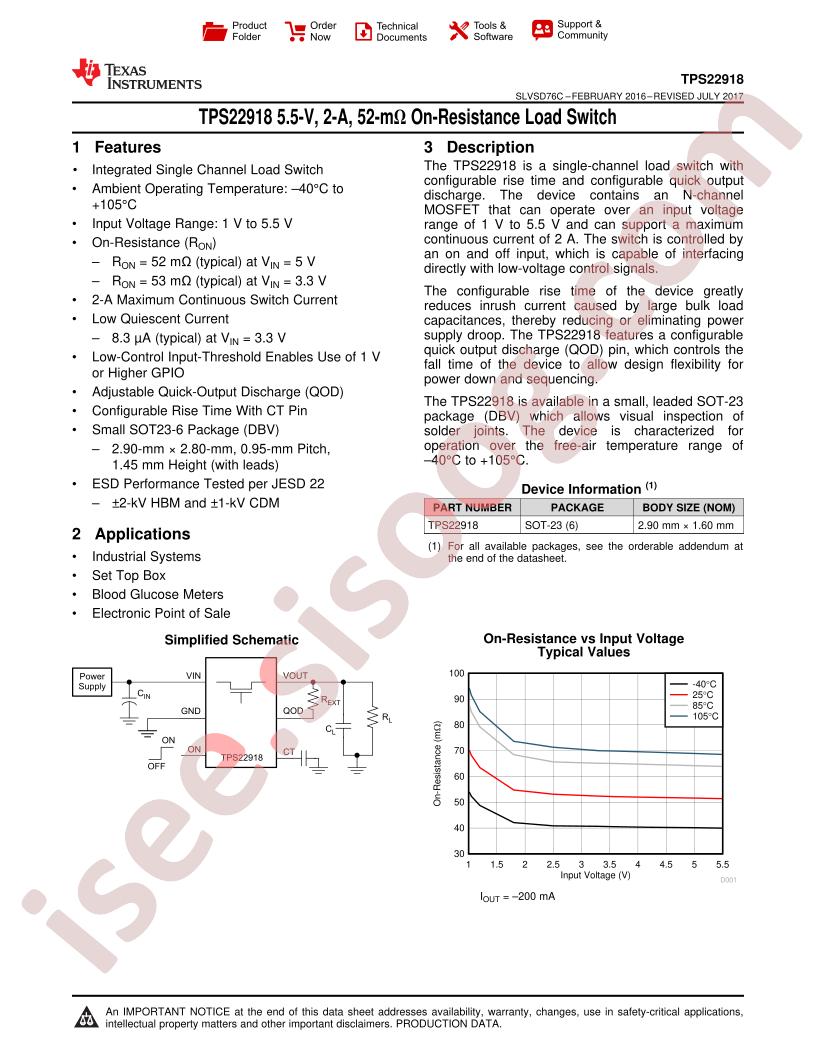

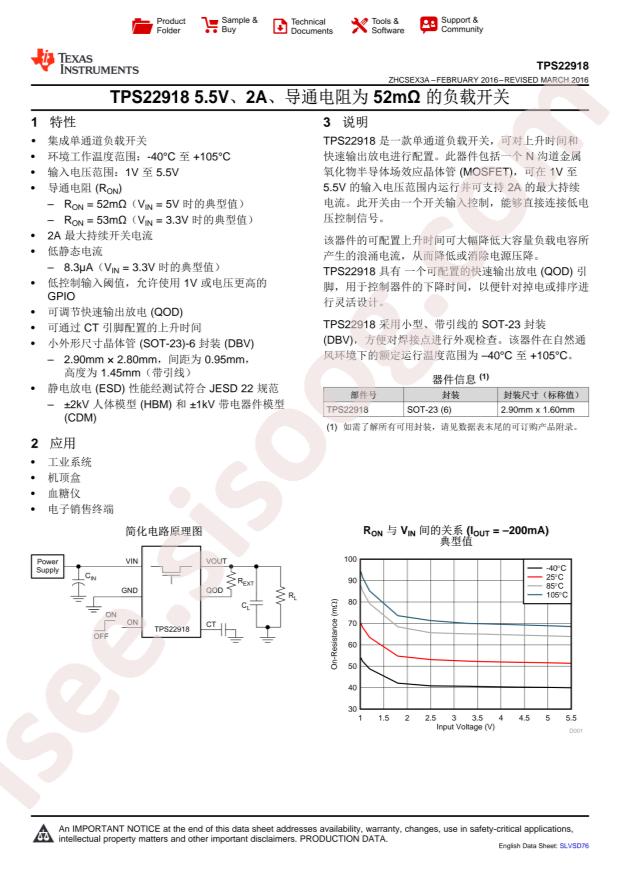

TPS22918 Datasheet

مشخصات دیتاشیت

نام دیتاشیت TPS22918 Datasheet
حجم فایل 1518.472 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت TPS22918 Datasheet

TPS22918 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS22918DBVT
  • Input Voltage: 1V~5.5V
  • Output Current: 2A
  • Number of Outputs: 1
  • Resistor On-State: 53mΩ
  • Operating Temperature -: -40°C~+105°C
  • Package: SOT-23-6
  • Manufacturer: Texas Instruments
  • Interface: On/Off
  • Current - Output (Max): 2A
  • Operating Temperature: -40°C ~ 105°C (TA)
  • Packaging: Cut Tape (CT)
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Features: Load Discharge, Slew Rate Controlled
  • Fault Protection: -
  • Package / Case: SOT-23-6
  • Switch Type: General Purpose
  • Voltage - Load: 1V ~ 5.5V
  • Rds On (Typ): 53mOhm
  • Supplier Device Package: SOT-23-6
  • Mounting Type: Surface Mount
  • Input Type: Non-Inverting
  • Base Part Number: TPS229
  • Ratio - Input:Output: 1:1
  • Output Type: N-Channel
  • Part Status: Active
  • Series: -
  • Output Configuration: High Side
  • detail: Power Switch/Driver 1:1 N-Channel 2A SOT-23-6
