دیتاشیت TPS563208DDCR

مشخصات دیتاشیت

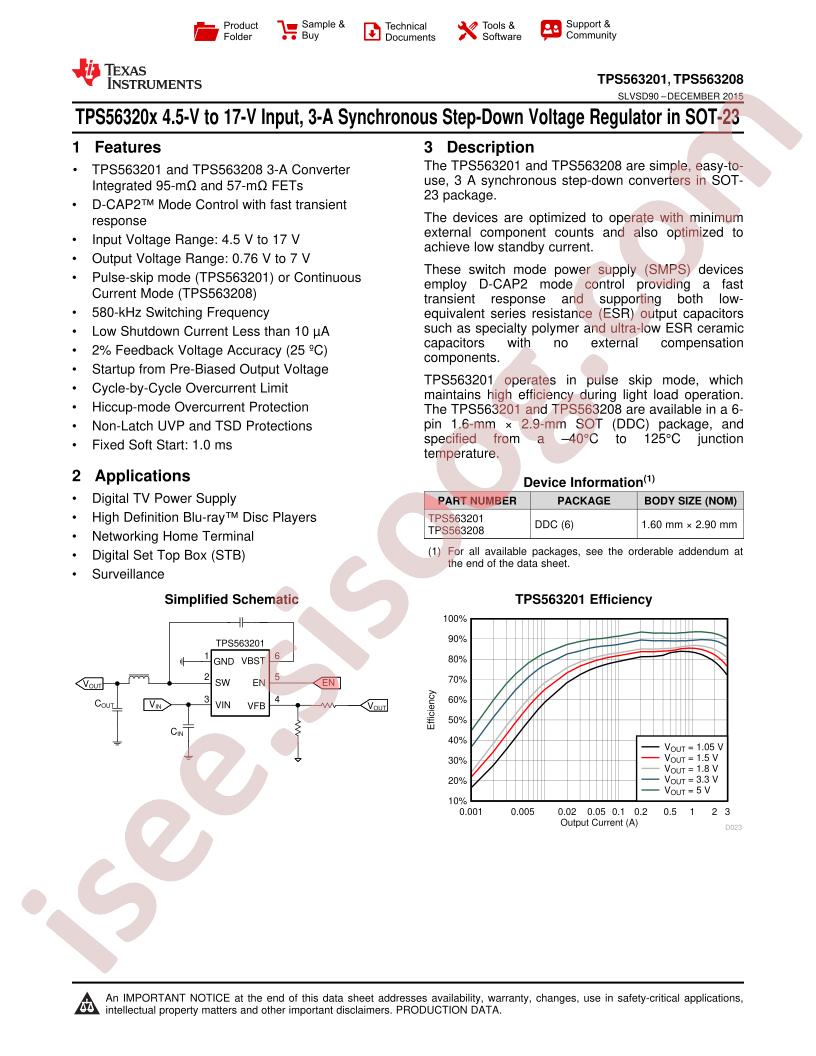

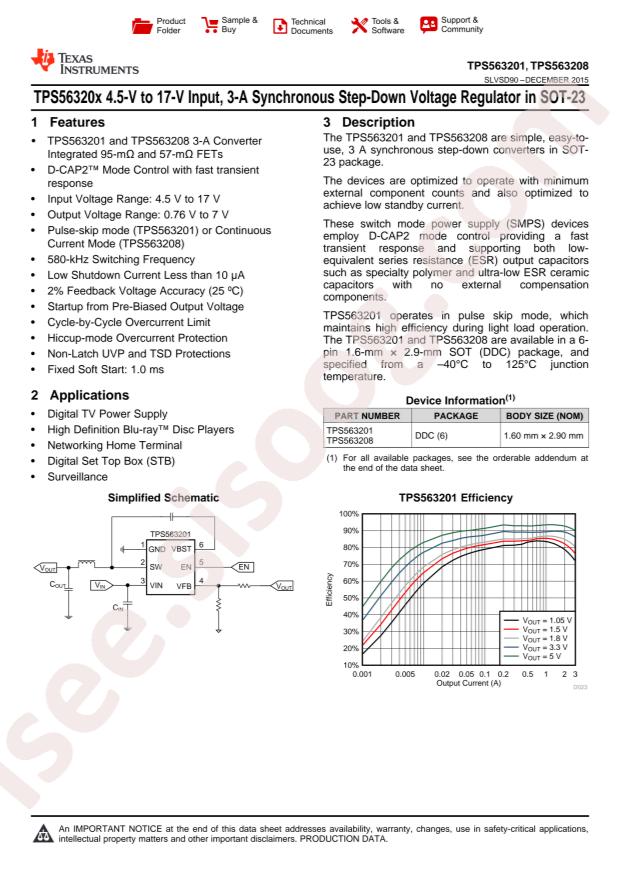

دانلود دیتاشیت TPS563201, TPS563208 Datasheet	TPS563201, TPS563208 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS563208DDCR
Output Type: Adjustable
Input Voltage: 4.5V~17V
Output Voltage: 0.768V~7V
Number of Outputs: 1
Switching Frequency: 580kHz
Output Current (Max): 3A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: SOT-23-6
Manufacturer: Texas Instruments
Voltage - Output (Min/Fixed): 0.768V
Voltage - Input (Max): 17V
Voltage - Output (Max): 7V
Voltage - Input (Min): 4.5V
Mounting Type: Surface Mount
Synchronous Rectifier: Yes
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-6 Thin, TSOT-23-6
Part Status: Active
Series: D-CAP2™, Eco-Mode™
Current - Output: 3A
Base Part Number: TPS563
Output Configuration: Positive
Frequency - Switching: 580kHz
Supplier Device Package: TSOT-23-6
detail: Buck Switching Regulator IC Positive Adjustable 0.768V 1 Output 3A SOT-23-6 Thin, TSOT-23-6
