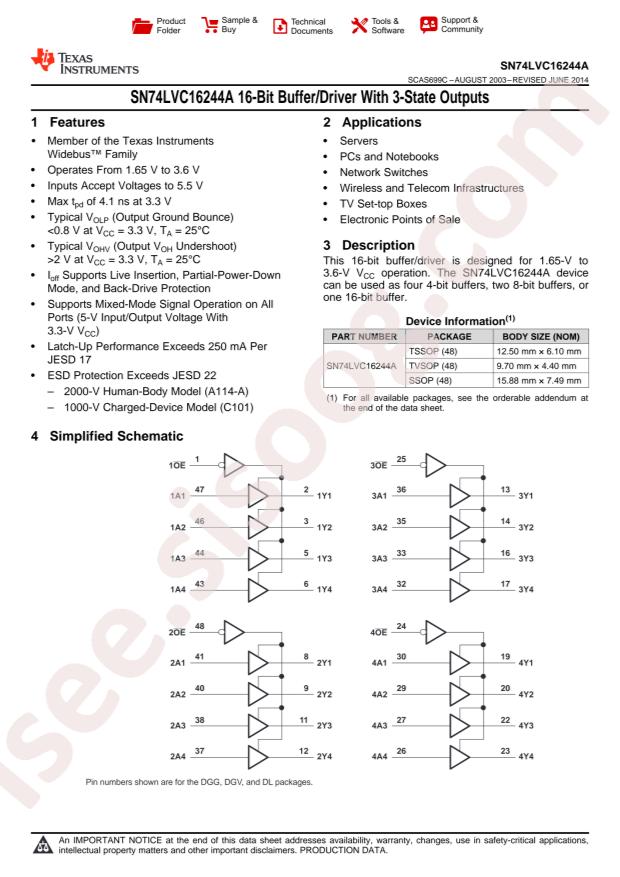

- دیتاشیت SN74LVC16244ADGGR
SN74LVC16244ADGGR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVC16244ADGGR |
|---|---|
| حجم فایل | 84.71 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت SN74LVC16244ADGGR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN74LVC16244A 26 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74LVC16244ADGGR
- Input type: -
- output type: Tri-State
- Sink Current: 24mA
- Source Current: 24mA
- Supply Voltage: 1.65V~3.6V
- Operating Temperature: -40°C~+125°C
- Package: TSSOP-48-6.1mm
- Manufacturer: Texas Instruments
- Logic Type: Buffer, Non-Inverting
- Current - Output High, Low: 24mA, 24mA
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Number of Bits per Element: 4
- Base Part Number: SN74LVC16
- Number of Elements: 4
- Package / Case: 48-TFSOP (0.240", 6.10mm Width)
- Part Status: Active
- Series: 74LVC
- Voltage - Supply: 1.65V ~ 3.6V
- Supplier Device Package: 48-TSSOP
- detail: Buffer, Non-Inverting 4 Element 4 Bit per Element 3-State Output 48-TSSOP
