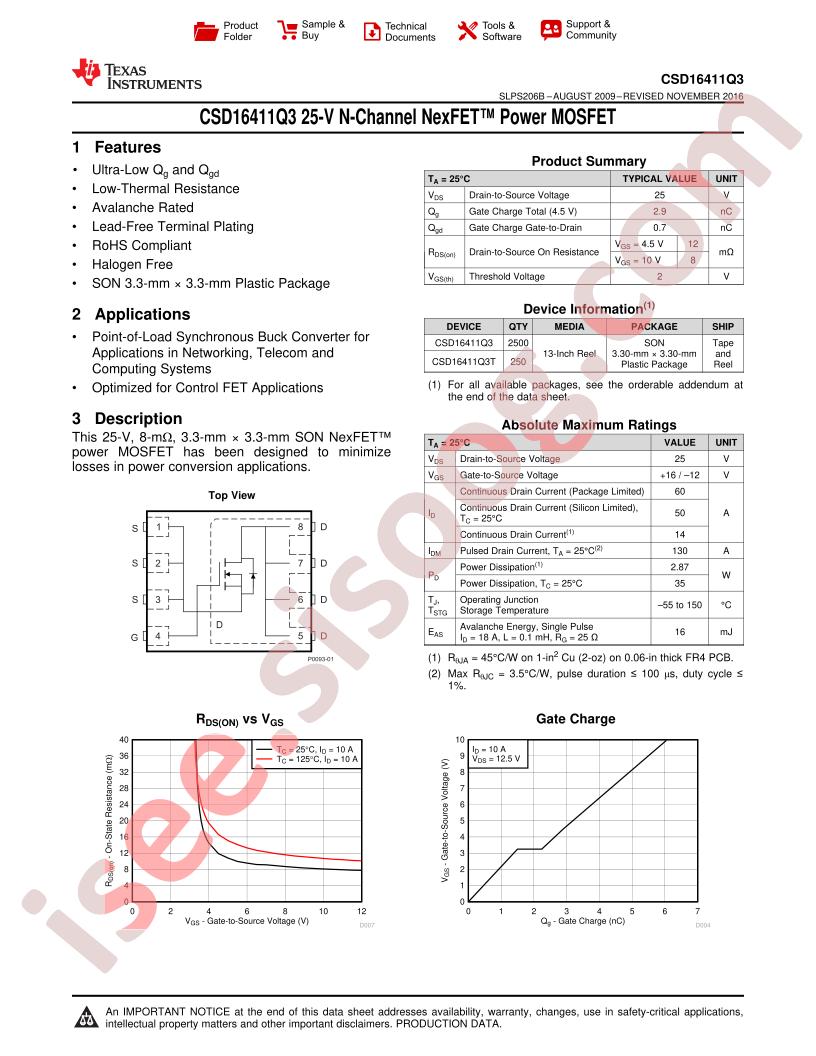

CSD16411Q3 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD16411Q3
|
|
حجم فایل
|
586.122
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
Power Dissipation (Max):
2.7W (Ta)
-
Input Capacitance (Ciss) (Max) @ Vds:
570pF @ 12.5V
-
Vgs (Max):
+16V, -12V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Supplier Device Package:
8-VSON (3.3x3.3)
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Base Part Number:
CSD164
-
Manufacturer:
Texas Instruments
-
Vgs(th) (Max) @ Id:
2.3V @ 250µA
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
FET Feature:
-
-
Package / Case:
8-PowerVDFN
-
Part Status:
Active
-
Series:
NexFET™
-
Gate Charge (Qg) (Max) @ Vgs:
3.8nC @ 4.5V
-
Rds On (Max) @ Id, Vgs:
10mOhm @ 10A, 10V
-
Current - Continuous Drain (Id) @ 25°C:
14A (Ta), 56A (Tc)
-
Drain to Source Voltage (Vdss):
25V
-
detail:
N-Channel 25V 14A (Ta), 56A (Tc) 2.7W (Ta) Surface Mount 8-VSON (3.3x3.3)
