CSD16340Q3 دیتاشیت

مشخصات دیتاشیت

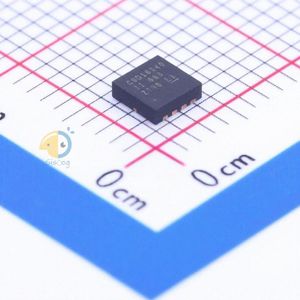

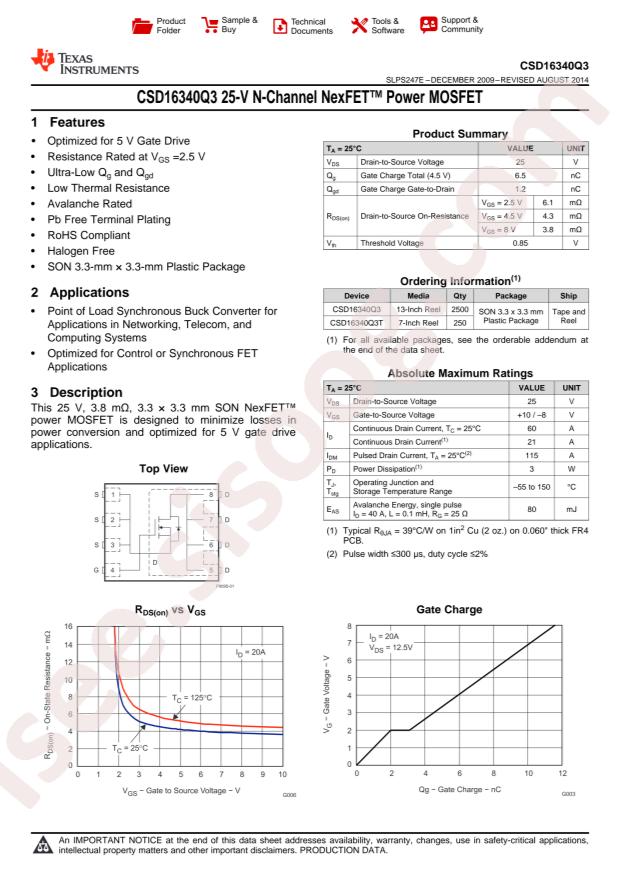

مشاهده دیتاشیت CSD16340Q3	دانلود دیتاشیت

RoHS: true
Type: N Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: Texas Instruments CSD16340Q3
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 3W
Total Gate Charge (Qg@Vgs): 9.2nC@4.5V
Drain Source Voltage (Vdss): 25V
Input Capacitance (Ciss@Vds): 1350pF@12.5V
Continuous Drain Current (Id): 21A;60A
Gate Threshold Voltage (Vgs(th)@Id): 1.1V@250uA
Drain Source On Resistance (RDS(on)@Vgs,Id): 4.5mΩ@8V,20A
Package: VSON-CLIP-8(3.3x3.3)
Manufacturer: Texas Instruments
Power Dissipation (Max): 3W (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 1350pF @ 12.5V
Vgs (Max): +10V, -8V
Supplier Device Package: 8-VSON-CLIP (3.3x3.3)
Packaging: Cut Tape (CT)
Mounting Type: Surface Mount
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 8V
Base Part Number: CSD1634
Vgs(th) (Max) @ Id: 1.1V @ 250µA
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
FET Feature: -
Package / Case: 8-PowerTDFN
Part Status: Active
Series: NexFET™
Gate Charge (Qg) (Max) @ Vgs: 9.2nC @ 4.5V
Rds On (Max) @ Id, Vgs: 4.5mOhm @ 20A, 8V
Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 60A (Tc)
Drain to Source Voltage (Vdss): 25V
detail: N-Channel 25V 21A (Ta), 60A (Tc) 3W (Ta) Surface Mount 8-VSON-CLIP (3.3x3.3)
