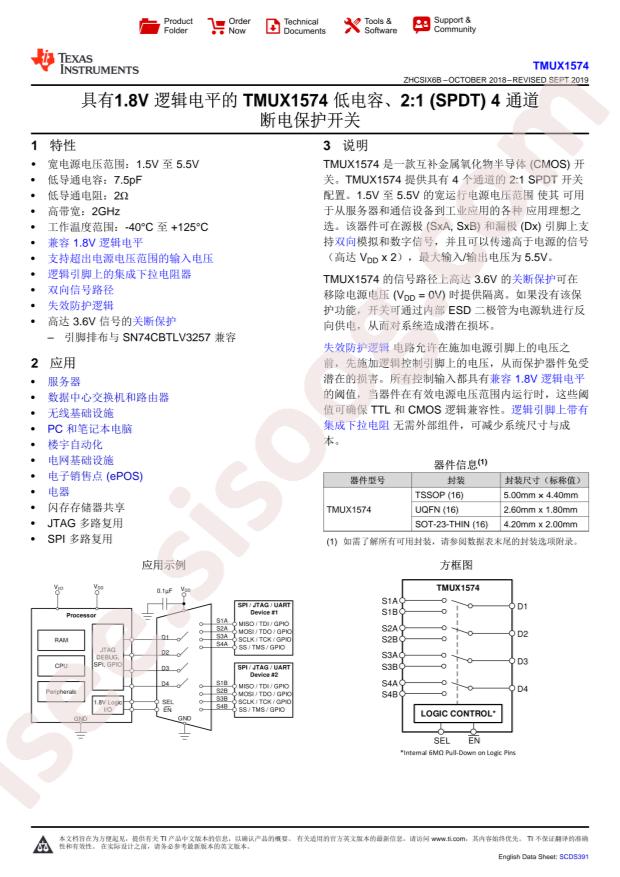

TMUX1574RSVR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TMUX1574RSVR
|
|
حجم فایل
|
90.097
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
44
|
مشخصات فنی
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Texas Instruments TMUX1574RSVR
-
Switch Circuit:
-
-
Package:
UQFN-16(1.8x2.6)
-
Manufacturer:
Texas Instruments
-
Channel Capacitance (CS(off), CD(off)):
3.5pF, 3.5pF
-
Voltage - Supply, Dual (V±):
-
-
Channel-to-Channel Matching (ΔRon):
70mOhm
-
Switch Time (Ton, Toff) (Max):
35µs, 95ns
-
Mounting Type:
Surface Mount
-
Packaging:
Cut Tape (CT)
-
Operating Temperature:
-40°C ~ 125°C (TA)
-
Package / Case:
16-UFQFN
-
Multiplexer/Demultiplexer Circuit:
2:1
-
Charge Injection:
3.5pC
-
Current - Leakage (IS(off)) (Max):
100nA
-
On-State Resistance (Max):
4.5Ohm
-
Number of Circuits:
4
-
Crosstalk:
-90dB @ 100kHz
-
-3db Bandwidth:
2GHz
-
Part Status:
Active
-
Series:
-
-
Base Part Number:
TMUX15
-
Supplier Device Package:
16-UQFN (2.6x1.8)
-
detail:
4 Circuit IC Switch 2:1 4.5Ohm 16-UQFN (2.6x1.8)
