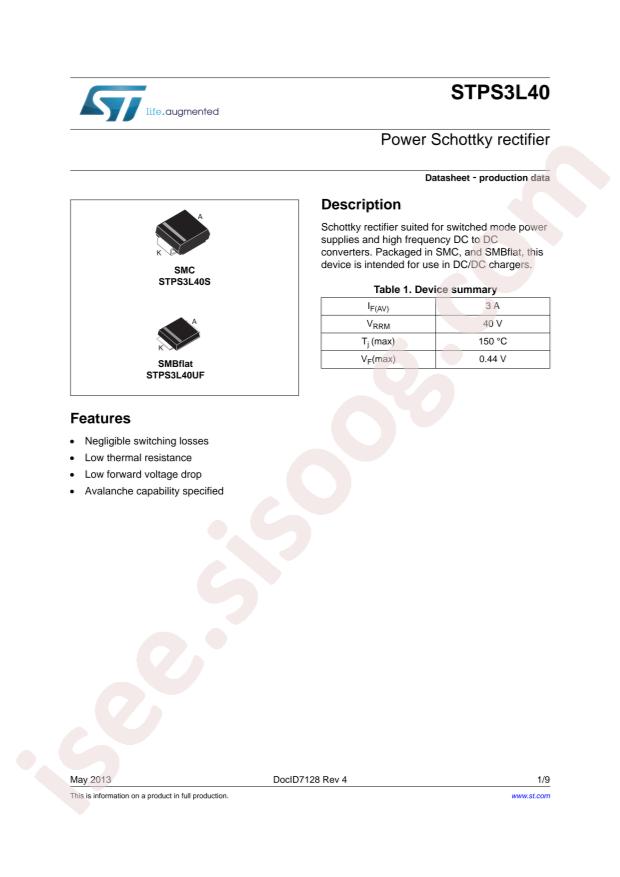

STPS3L40UF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STPS3L40UF
|
|
حجم فایل
|
38.693
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
STMicroelectronics STPS3L40UF
-
Reverse Voltage (Vr):
40V
-
Forward Voltage (Vf@If):
500mV@3A
-
Average Rectified Current (Io):
3A
-
Package:
SMB-FL
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
40V
-
Current - Average Rectified (Io):
3A
-
Voltage - Forward (Vf) (Max) @ If:
500mV @ 3A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
100µA @ 40V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-221AA, SMB Flat Leads
-
Supplier Device Package:
SMBflat
-
Operating Temperature - Junction:
150°C (Max)
-
Base Part Number:
STPS3L
-
detail:
Diode Schottky 40V 3A Surface Mount SMBflat
