دیتاشیت TCA9406DCTR

TCA9406

مشخصات دیتاشیت

نام دیتاشیت TCA9406
حجم فایل 1206.968 کیلوبایت
نوع فایل pdf
تعداد صفحات 36

دانلود دیتاشیت TCA9406

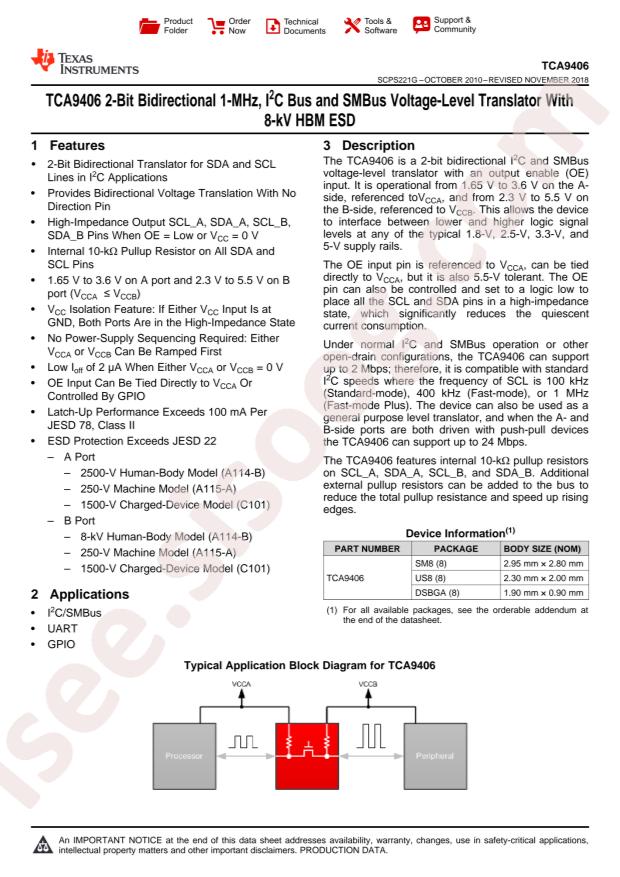

TCA9406 Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Translators / Level Shifters
  • Data Rate: 24Mbps
  • Datasheet: Texas Instruments TCA9406DCTR
  • Output Type: Open Drain
  • Channel Type: Bi-Directional
  • Number of Channels: 2
  • Operating Temperature: -40°C~+85°C
  • Supply Voltage (VCCA): 1.65V~3.6V
  • Supply Voltage (VCCB): 2.3V~5.5V
  • Package: SM-8
  • Manufacturer: Texas Instruments
  • Base Part Number: TCA940
  • Output Signal: -
  • Input Signal: -
  • Number of Circuits: 1
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Translator Type: Voltage Level
  • Channels per Circuit: 2
  • Features: Auto-Direction Sensing
  • Package / Case: 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
  • Part Status: Active
  • Series: TCA
  • Voltage - VCCB: 2.3V ~ 5.5V
  • Voltage - VCCA: 1.65V ~ 3.6V
  • Supplier Device Package: SM8 (SSOP)
  • detail: Voltage Level Translator Bidirectional 1 Circuit 2 Channel 24Mbps SM8 (SSOP)
