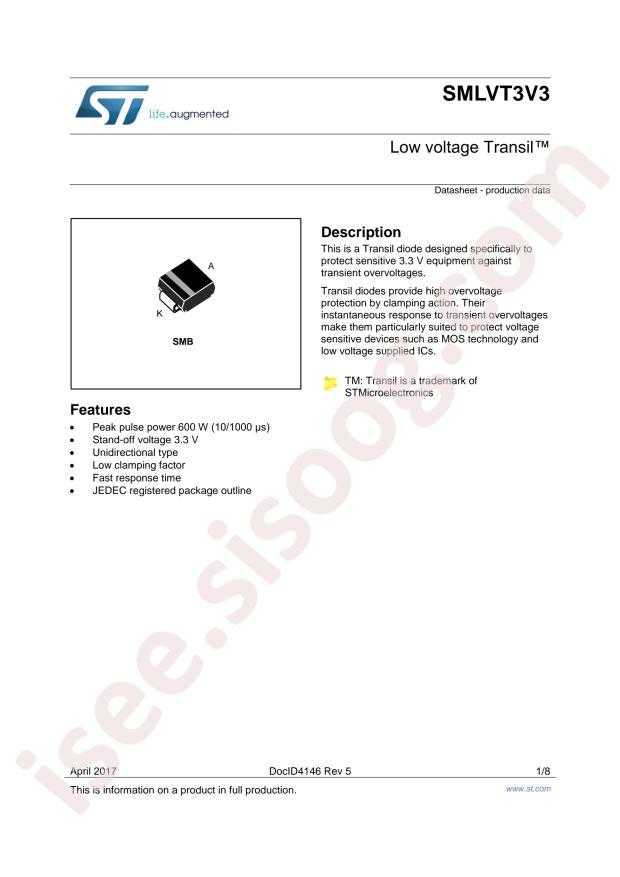

SMLVT3V3 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SMLVT3V3
|
|
حجم فایل
|
42.486
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/TVS
-
Datasheet:
STMicroelectronics SMLVT3V3
-
Breakdown Voltage:
4.1V
-
Unidirectional Channels:
1
-
Maximum Clamping Voltage:
7.3V
-
Reverse Stand-Off Voltage (Vrwm):
3.3V
-
Peak Pulse Current (Ipp)@10/1000us:
50A
-
Peak Pulse Power Dissipation (Ppp)@10/1000us:
600W
-
Package:
SMB
-
Manufacturer:
STMicroelectronics
-
Series:
SMLV, TRANSIL™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Zener
-
Voltage - Reverse Standoff (Typ):
3.3V
-
Voltage - Breakdown (Min):
4.1V
-
Voltage - Clamping (Max) @ Ipp:
10.3V
-
Current - Peak Pulse (10/1000µs):
200A (8/20µs)
-
Power - Peak Pulse:
600W
-
Power Line Protection:
No
-
Applications:
General Purpose
-
Capacitance @ Frequency:
5200pF @ 1MHz
-
Operating Temperature:
-25°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-214AA, SMB
-
Supplier Device Package:
SMB (DO-214AA)
-
Base Part Number:
SMLVT
-
detail:
10.3V Clamp 200A (8/20µs) Ipp Tvs Diode Surface Mount SMB (DO-214AA)
