دیتاشیت TXB0104RUTR

TXB0104

مشخصات دیتاشیت

نام دیتاشیت TXB0104
حجم فایل 1417.808 کیلوبایت
نوع فایل pdf
تعداد صفحات 41

دانلود دیتاشیت TXB0104

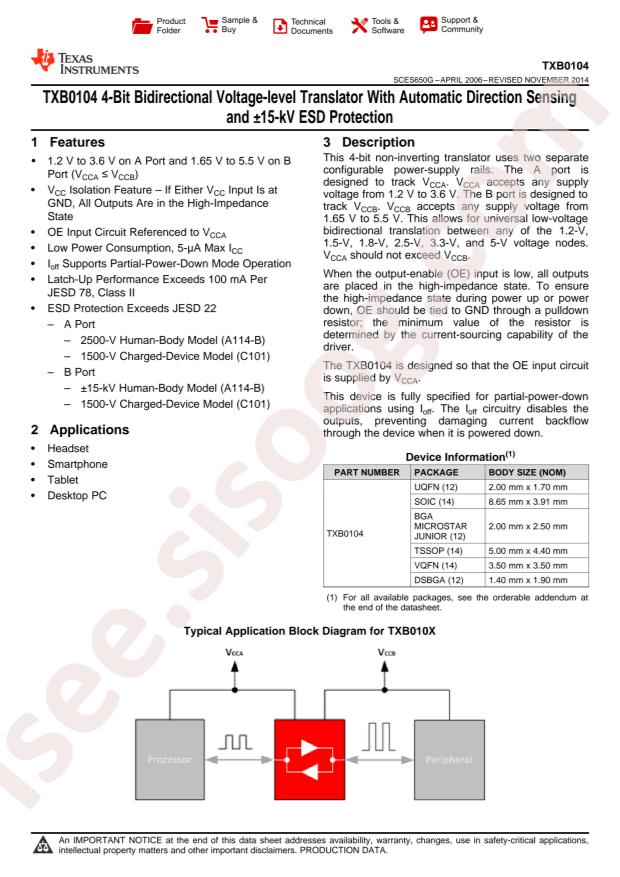

TXB0104 Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Translators / Level Shifters
  • Features: Automatic direction detection
  • Data Rate: 100Mbps
  • Datasheet: Texas Instruments TXB0104RUTR
  • Output Type: Tri-State;Unidirectional Voltage Level Translators
  • Channel Type: Bi-Directional
  • Input Signal: -
  • Output Signal: -
  • Number of Channels: 4
  • Operating Temperature: -40°C~+85°C
  • Supply Voltage (VCCA): 1.2V~3.6V
  • Supply Voltage (VCCB): 1.65V~5.5V
  • Package: QFN-12(1.7x2)
  • Manufacturer: Texas Instruments
  • Base Part Number: TXB010
  • Number of Circuits: 1
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Translator Type: Voltage Level
  • Channels per Circuit: 4
  • Package / Case: 12-UFQFN
  • Part Status: Active
  • Series: -
  • Voltage - VCCB: 1.65V ~ 5.5V
  • Voltage - VCCA: 1.2V ~ 3.6V
  • Supplier Device Package: 12-UQFN (1.7x2)
  • detail: Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps 12-UQFN (1.7x2)
