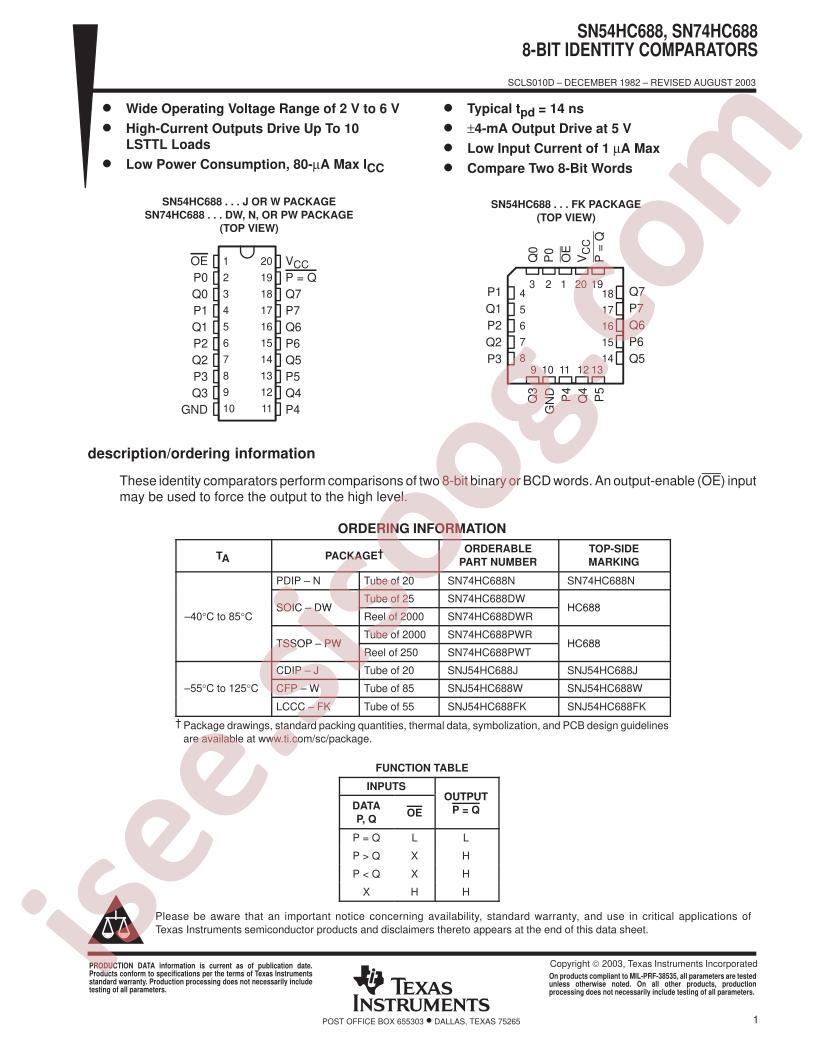

دیتاشیت SN74HC688DWR

SN74HC688DWR

مشخصات دیتاشیت

نام دیتاشیت SN74HC688DWR
حجم فایل 59.529 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

SN74HC688DWR

دانلود دیتاشیت

سایر مستندات

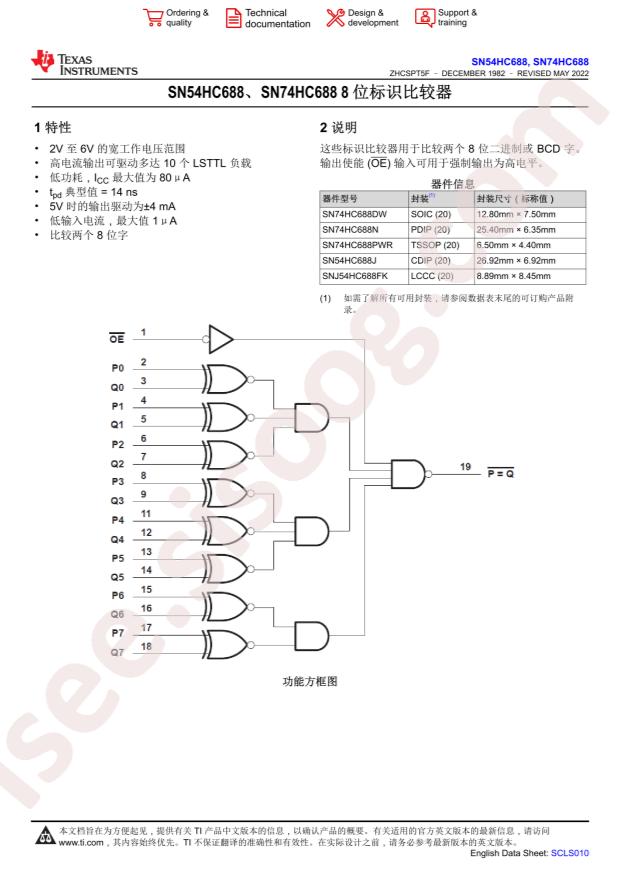

SN54HC688, SN74HC688 19 pages

مشخصات فنی

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Texas Instruments SN74HC688DWR
  • Package: SOP-20-300mil
  • Manufacturer: Texas Instruments
  • Current - Quiescent (Iq): 8µA
  • Type: Identity Comparator
  • Operating Temperature: -40°C ~ 85°C
  • Output: Active Low
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Output Function: A=B
  • Mounting Type: Surface Mount
  • Base Part Number: SN74HC6
  • Max Propagation Delay @ V, Max CL: 36ns @ 6V, 50pF
  • Packaging: Cut Tape (CT)
  • Package / Case: 20-SOIC (0.295", 7.50mm Width)
  • Part Status: Active
  • Series: 74HC
  • Number of Bits: 8
  • Voltage - Supply: 2V ~ 6V
  • Supplier Device Package: 20-SOIC
  • detail: Magnitude Comparator Bit Active Low Output A=B 20-SOIC
