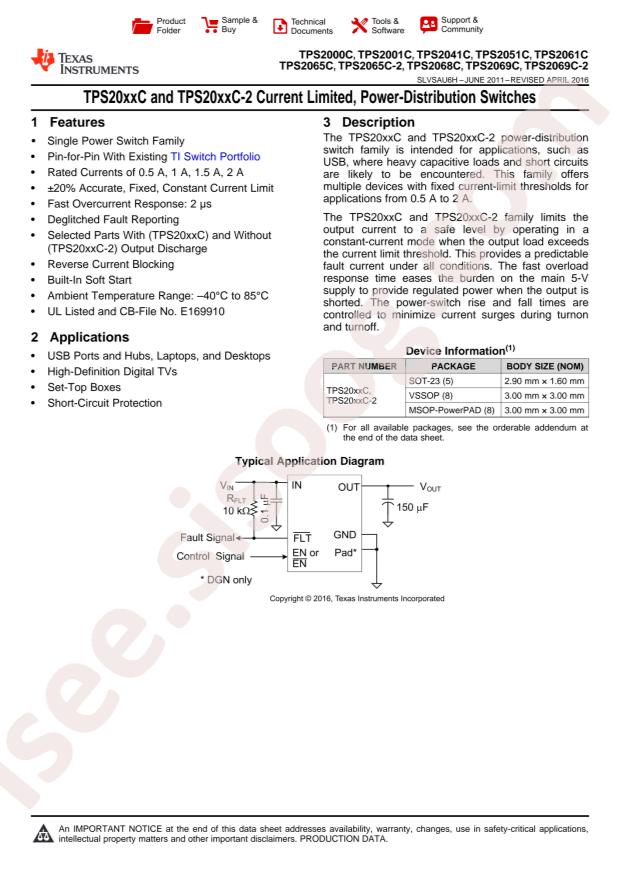

TPS2001CDGNR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS2001CDGNR
|
|
حجم فایل
|
85.815
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
44
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Power Distribution Switches
-
Datasheet:
Texas Instruments TPS2001CDGNR
-
Input Voltage:
4.5V~5.5V
-
Output Current:
2A
-
Number of Outputs:
1
-
Resistor On-State:
72mΩ
-
Operating Temperature -:
-40°C~+125°C
-
Package:
MSOP-8-EP
-
Manufacturer:
Texas Instruments
-
Interface:
On/Off
-
Current - Output (Max):
2A
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
Packaging:
Cut Tape (CT)
-
Voltage - Supply (Vcc/Vdd):
Not Required
-
Features:
Status Flag
-
Fault Protection:
Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Switch Type:
USB Switch
-
Voltage - Load:
4.5V ~ 5.5V
-
Rds On (Typ):
72mOhm
-
Supplier Device Package:
8-MSOP-PowerPad
-
Mounting Type:
Surface Mount
-
Input Type:
Non-Inverting
-
Base Part Number:
TPS200
-
Ratio - Input:Output:
1:1
-
Output Type:
N-Channel
-
Part Status:
Active
-
Series:
-
-
Output Configuration:
High Side
-
detail:
Power Switch/Driver 1:1 N-Channel 2A 8-MSOP-PowerPad
