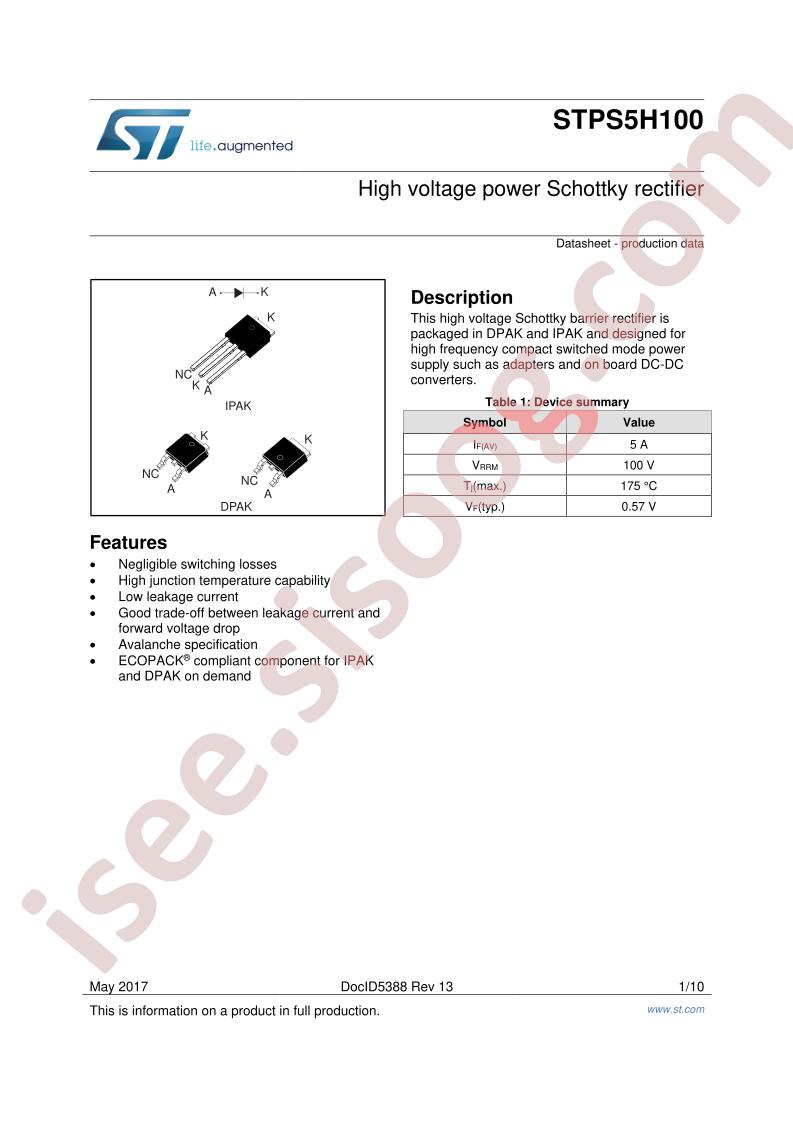

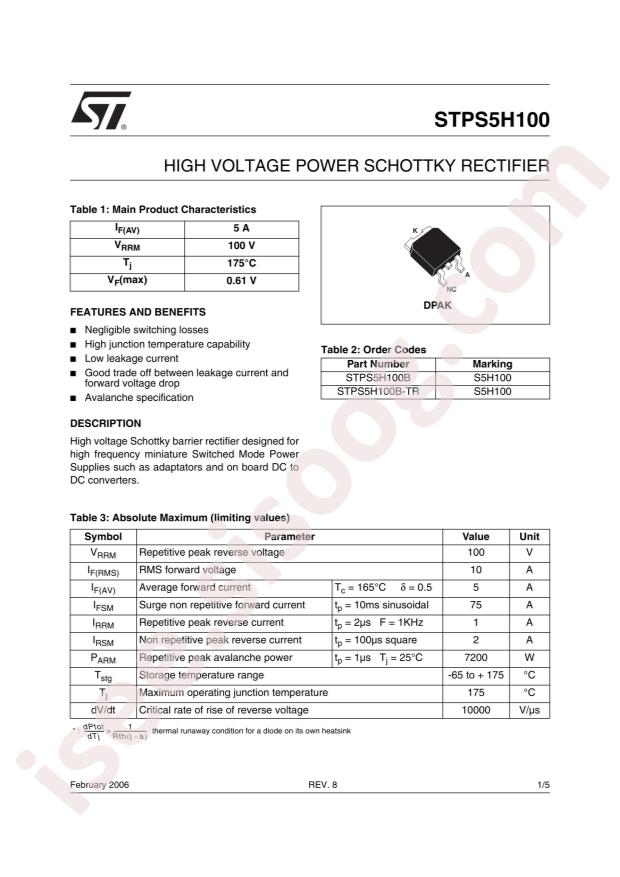

دیتاشیت STPS5H100B-TR
مشخصات دیتاشیت
| نام دیتاشیت |
STPS5H100
|
| حجم فایل |
491.642
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
STMicroelectronics STPS5H100B-TR
-
Reverse Voltage (Vr):
100V
-
Forward Voltage (Vf@If):
730mV@5A
-
Reverse Leakage Current (Ir):
3.5uA@100V
-
Average Rectified Current (Io):
5A
-
Package:
TO-252-2(DPAK)
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
100V
-
Current - Average Rectified (Io):
5A
-
Voltage - Forward (Vf) (Max) @ If:
730mV @ 5A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
3.5µA @ 100V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
DPAK
-
Operating Temperature - Junction:
175°C (Max)
-
Base Part Number:
STPS5
-
detail:
Diode Schottky 100V 5A Surface Mount DPAK
