STG3693QTR دیتاشیت

مشخصات دیتاشیت

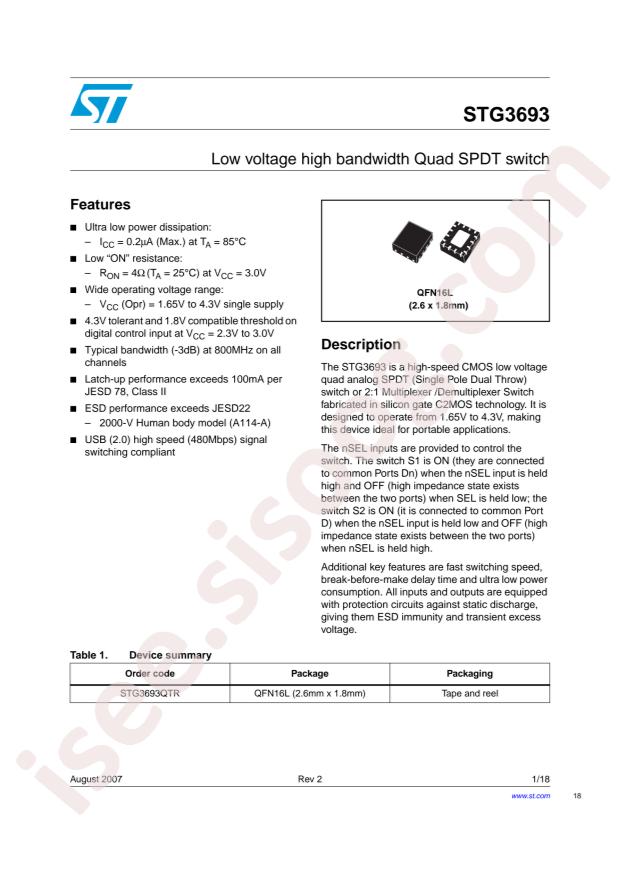

مشاهده دیتاشیت STG3693QTR	دانلود دیتاشیت

STG3693 19 pages

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: STMicroelectronics STG3693QTR
Switch Circuit: -

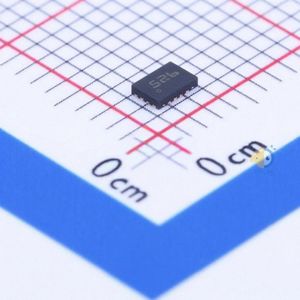

Package: QFN-16L-EP(1.8x2.6)
Manufacturer: STMicroelectronics
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Multiplexer/Demultiplexer Circuit: 2:1
Number of Circuits: 4
On-State Resistance (Max): 5.2Ohm
Channel-to-Channel Matching (ΔRon): 300mOhm
Voltage - Supply, Single (V+): 1.65V ~ 4.3V
Voltage - Supply, Dual (V±): -
Switch Time (Ton, Toff) (Max): 15ns, 5ns
-3db Bandwidth: 800MHz
Charge Injection: 5pC
Channel Capacitance (CS(off), CD(off)): 5pF
Current - Leakage (IS(off)) (Max): 20nA
Crosstalk: -78dB @ 1MHz
Operating Temperature: -55°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 16-UFQFN Exposed Pad
Supplier Device Package: 16-QFN (2.6x1.8)
Base Part Number: STG3693
detail: 4 Circuit IC Switch 2:1 5.2Ohm 16-QFN (2.6x1.8)
