دیتاشیت UCC28C43DR
مشخصات دیتاشیت
| نام دیتاشیت | UCC28C40-45, UCC38C40-45 |
|---|---|
| حجم فایل | 4000.192 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 55 |
دانلود دیتاشیت UCC28C40-45, UCC38C40-45 |
UCC28C40-45, UCC38C40-45 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Datasheet: Texas Instruments UCC28C43DR

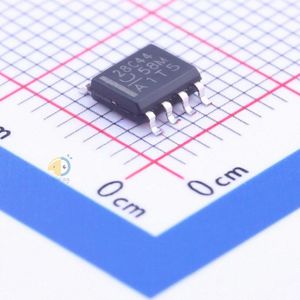

- Package: SOP-8
- Manufacturer: Texas Instruments
- Duty Cycle (Max): 96%
- Operating Temperature: -40°C ~ 105°C (TJ)
- Packaging: Cut Tape (CT)
- Topology: Boost, Flyback, Forward Converter
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Frequency - Switching: Up to 1MHz
- Output Phases: 1
- Serial Interfaces: -
- Clock Sync: No
- Supplier Device Package: 8-SOIC
- Function: Step-Up, Step-Up/Step-Down
- Mounting Type: Surface Mount
- Base Part Number: UCC28C
- Synchronous Rectifier: No
- Voltage - Supply (Vcc/Vdd): 7.6V ~ 18V
- Output Type: Transistor Driver
- Control Features: Frequency Control
- Part Status: Active
- Series: -
- Output Configuration: Positive
- Number of Outputs: 1
- detail: Boost, Flyback, Forward Converter Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-SOIC
