دیتاشیت VN751PT13TR

VN751PT

مشخصات دیتاشیت

نام دیتاشیت VN751PT
حجم فایل 867.372 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت VN751PT

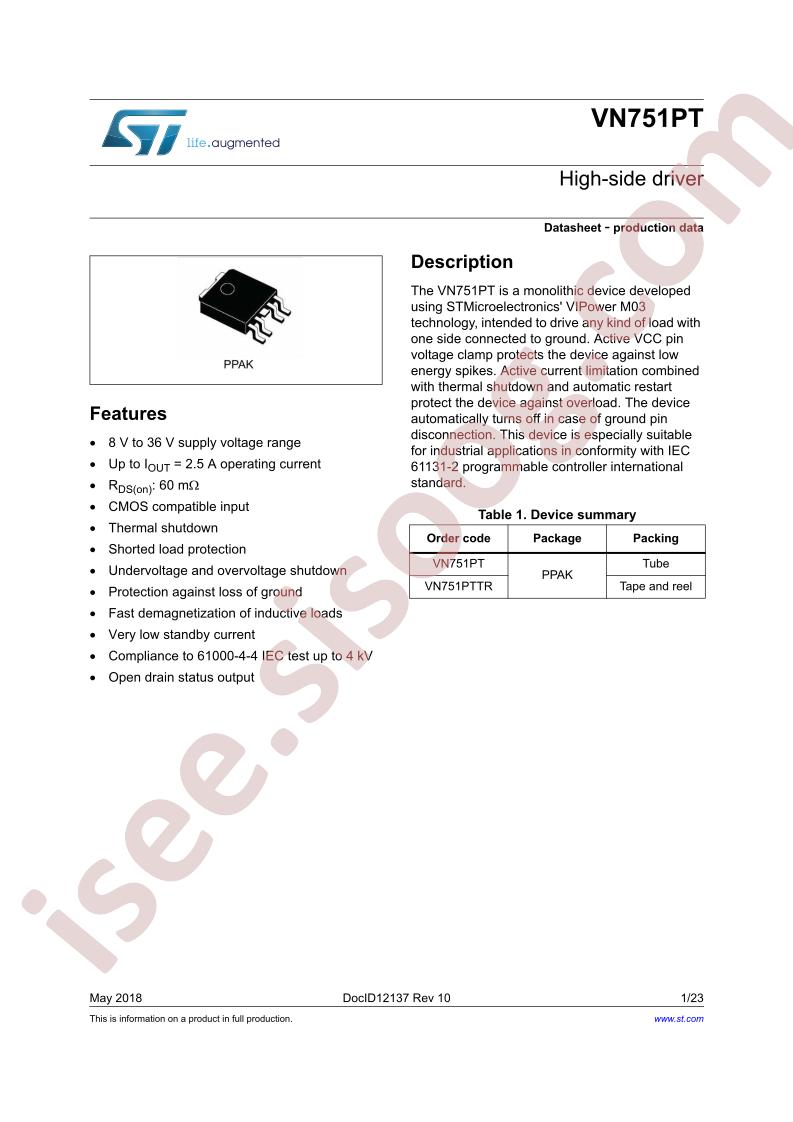

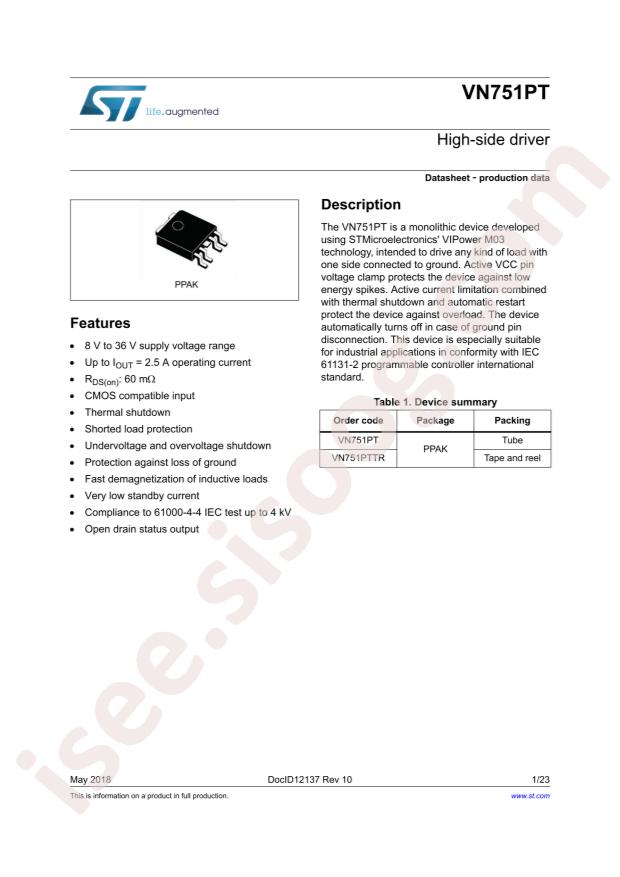

VN751PT Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: STMicroelectronics VN751PT13TR
  • Input Voltage: 5.5V~36V
  • Output Current: 2.5A
  • Number of Outputs: 1
  • Resistor On-State: 60mΩ
  • Operating Temperature -: -40°C~+150°C
  • Package: PPAK
  • Manufacturer: STMicroelectronics
  • Series: VIPower™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: General Purpose
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 5.5V ~ 36V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 2.5A
  • Rds On (Typ): 60mOhm
  • Input Type: Non-Inverting
  • Features: Auto Restart, Status Flag
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PPAK
  • Package / Case: TO-252-5, DPak (4 Leads + Tab), TO-252AD
  • Base Part Number: VN751
  • detail: Power Switch/Driver 1:1 N-Channel 2.5A PPAK
