TMUX136MRSER دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TMUX136MRSER |
|---|---|
| حجم فایل | 65.186 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت TMUX136MRSER |
دانلود دیتاشیت |
|---|
سایر مستندات

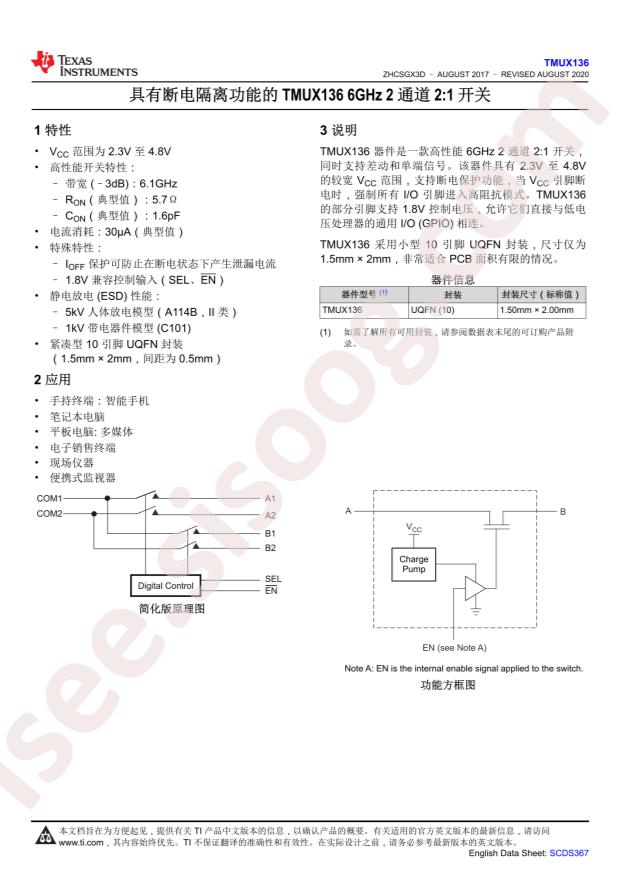

TMUX136 Datasheet 25 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Texas Instruments TMUX136MRSER
- Switch Circuit: -
- Package: QFN-10(1.5x2)
- Manufacturer: Texas Instruments
- Channel Capacitance (CS(off), CD(off)): 1.6pF, 1.6pF
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Operating Temperature: -40°C ~ 85°C (TA)
- Packaging: Cut Tape (CT)
- Multiplexer/Demultiplexer Circuit: 2:1
- -3db Bandwidth: 6.1GHz
- Charge Injection: -
- Current - Leakage (IS(off)) (Max): 2µA
- On-State Resistance (Max): 9.5Ohm
- Package / Case: 10-UFQFN
- Voltage - Supply, Single (V+): 2.3V ~ 4.8V
- Switch Time (Ton, Toff) (Max): -
- Supplier Device Package: 10-UQFN (2.0x1.5)
- Mounting Type: Surface Mount
- Base Part Number: TMUX13
- Voltage - Supply, Dual (V±): -
- Number of Circuits: 2
- Crosstalk: -37dB @ 240MHz
- Part Status: Active
- Series: -
- detail: 2 Circuit IC Switch 2:1 9.5Ohm 10-UQFN (2.0x1.5)
