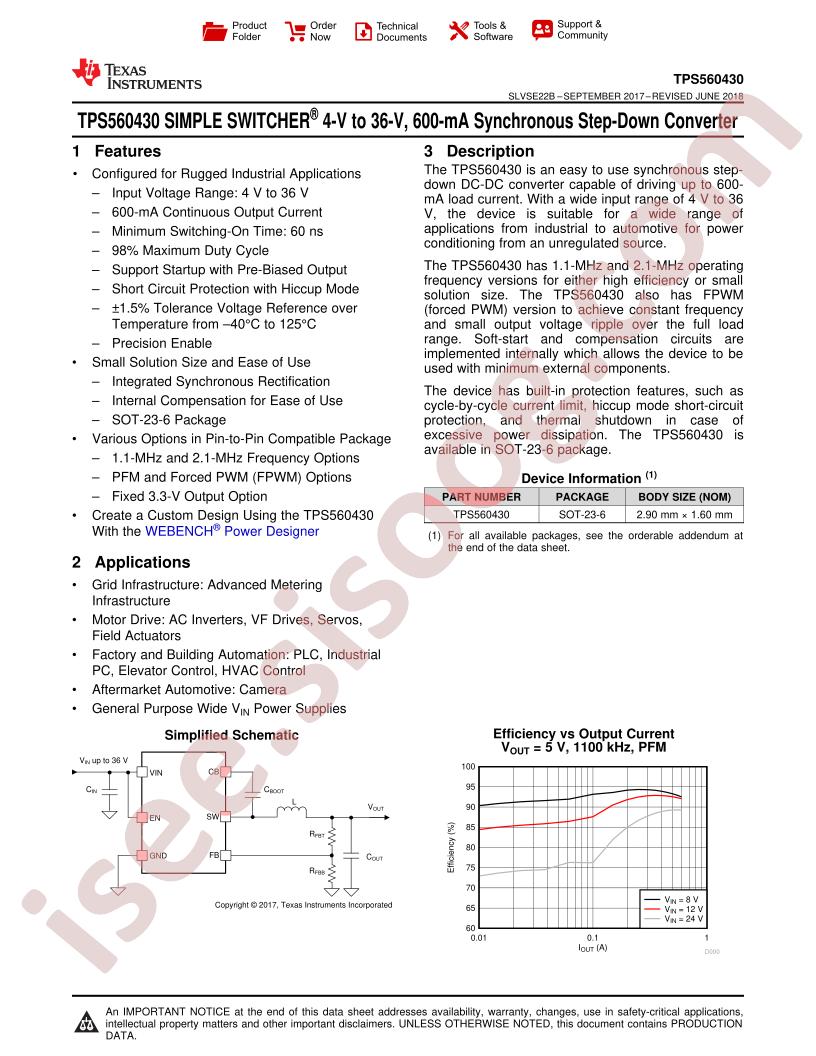

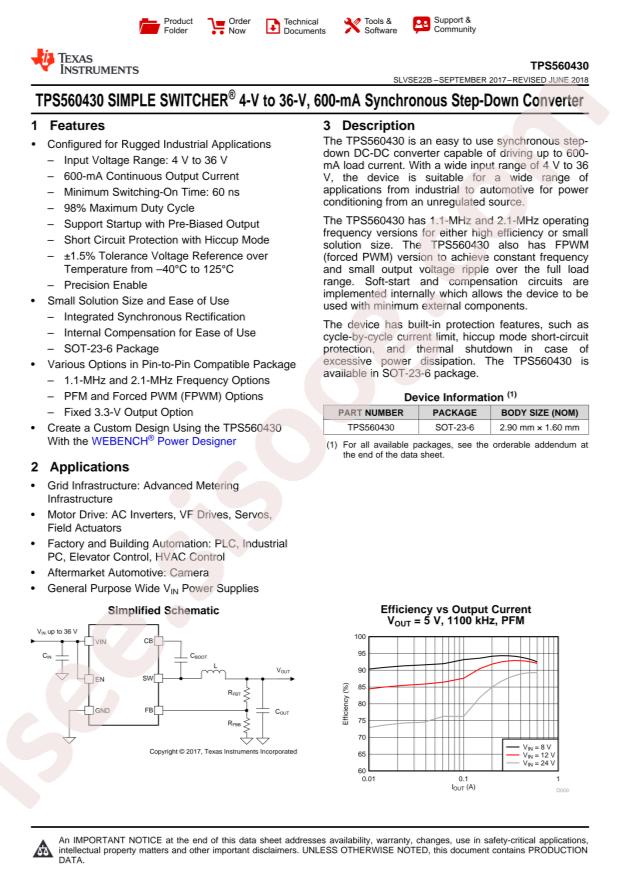

دیتاشیت TPS560430XDBVR
مشخصات دیتاشیت
| نام دیتاشیت | TPS560430 Datasheet |
|---|---|
| حجم فایل | 1518.967 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 33 |
دانلود دیتاشیت TPS560430 Datasheet |
TPS560430 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments TPS560430XDBVR
- Output Type: -
- Input Voltage: 4V~36V
- Output Voltage: 1V~34.2V
- Number of Outputs: 1
- Switching Frequency: 1.1MHz
- Output Current (Max): 600mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: SOT-23-6
- Manufacturer: Texas Instruments
- Voltage - Output (Min/Fixed): 1V
- Voltage - Input (Max): 36V
- Voltage - Output (Max): 34.2V
- Voltage - Input (Min): 4V
- Mounting Type: Surface Mount
- Synchronous Rectifier: Yes
- Packaging: Cut Tape (CT)
- Package / Case: SOT-23-6
- Part Status: Active
- Series: SIMPLE SWITCHER®
- Current - Output: 600mA
- Base Part Number: TPS560
- Output Configuration: Positive
- Frequency - Switching: 1.1MHz
- Supplier Device Package: SOT-23-6
- detail: Buck Switching Regulator IC Positive PFM 1V 1 Output 600mA SOT-23-6
