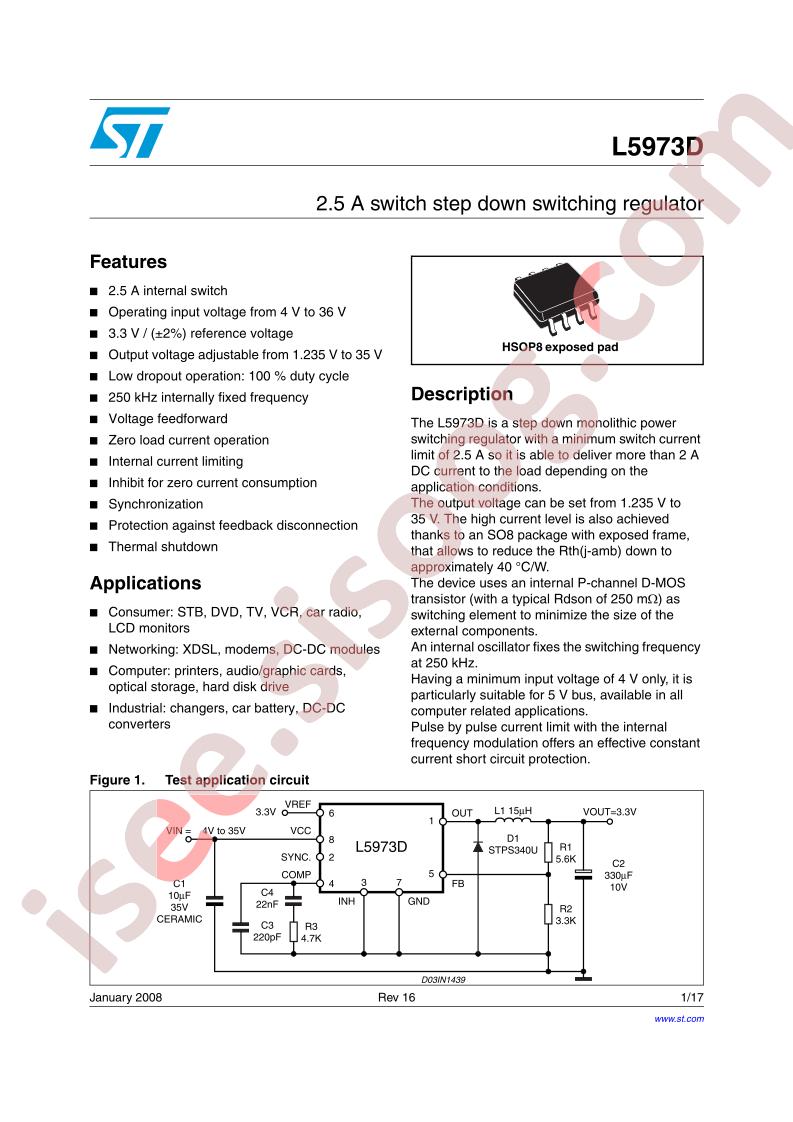

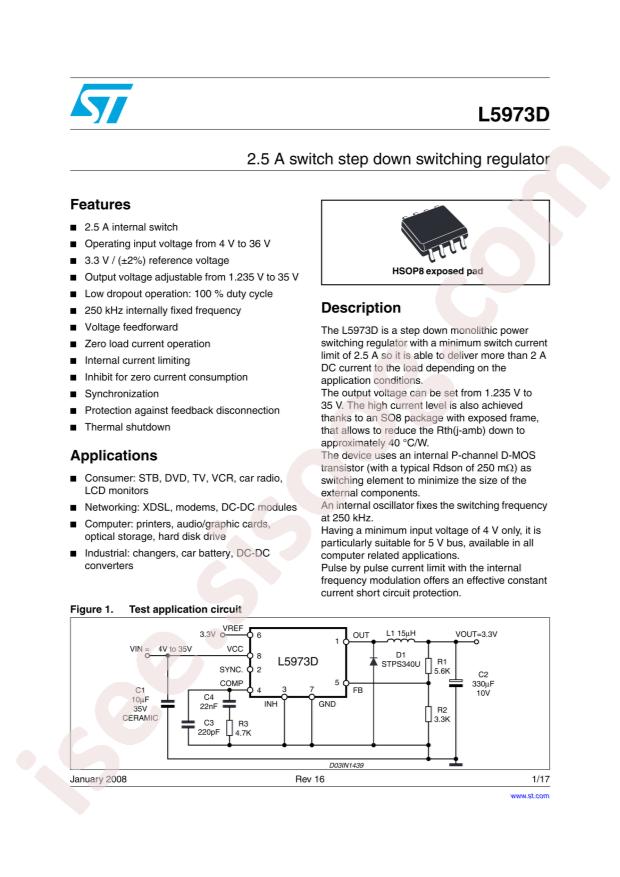

دیتاشیت L5973D013TR
مشخصات دیتاشیت
| نام دیتاشیت |
L5973D
|
| حجم فایل |
299.74
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
STMicroelectronics L5973D013TR
-
Output Type:
Adjustable
-
Input Voltage:
4V~36V
-
Output Voltage:
1.235V~35V
-
Number of Outputs:
1
-
Switching Frequency:
250kHz
-
Output Current (Max):
2.5A
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
HSOP-8-EP
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
4V
-
Voltage - Input (Max):
36V
-
Voltage - Output (Min/Fixed):
1.235V
-
Voltage - Output (Max):
35V
-
Current - Output:
2.5A
-
Frequency - Switching:
250kHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width) Exposed Pad
-
Supplier Device Package:
8-HSOP
-
Base Part Number:
L5973
-
detail:
Buck Switching Regulator IC Positive Adjustable 1.235V 1 Output 2.5A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
