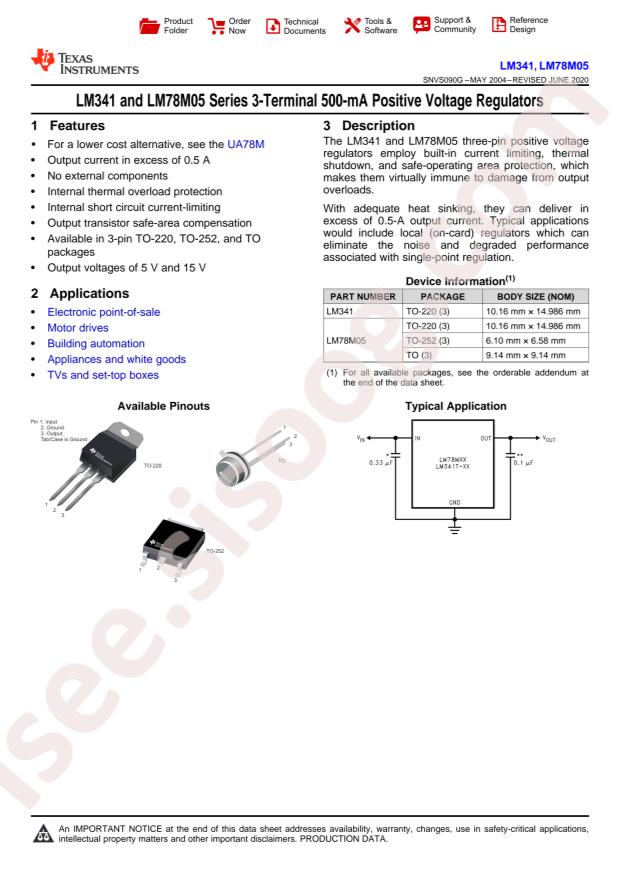

- دیتاشیت LM78M05CDTX/NOPB
LM78M05CDTX/NOPB دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LM78M05CDTX/NOPB |
|---|---|
| حجم فایل | 76.362 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت LM78M05CDTX/NOPB |
دانلود دیتاشیت |
|---|
سایر مستندات
LM341/LM78Mxx Series 25 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM78M05CDTX/NOPB
- Output Current: 500mA
- Output Voltage: 5V
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 3mA
- Power Supply Rejection Ratio (PSRR): 78dB@(120Hz)
- Package: TO-252
- Manufacturer: Texas Instruments
- Series: -
- Voltage Dropout (Max): -
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number: LM78M05
- Supplier Device Package: TO-252-3
- Current - Output: 500mA
- Current - Quiescent (Iq): 3mA
- Part Status: Not For New Designs
- Voltage - Input (Max): 35V
- Mounting Type: Surface Mount
- Control Features: -
- Protection Features: Over Current, Over Temperature, Short Circuit
- Voltage - Output (Min/Fixed): 5V
- PSRR: 78dB (120Hz)
- Voltage - Output (Max): -
- Packaging: Cut Tape (CT)
- Output Configuration: Positive
- Number of Regulators: 1
- Output Type: Fixed
- detail: Linear Voltage Regulator IC 1 Output 500mA TO-252-3
