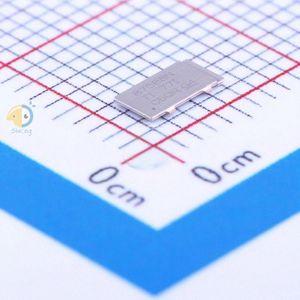

CSD87588N دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | CSD87588N |
|---|---|
| حجم فایل | 77.907 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت CSD87588N |
دانلود دیتاشیت |
|---|
سایر مستندات

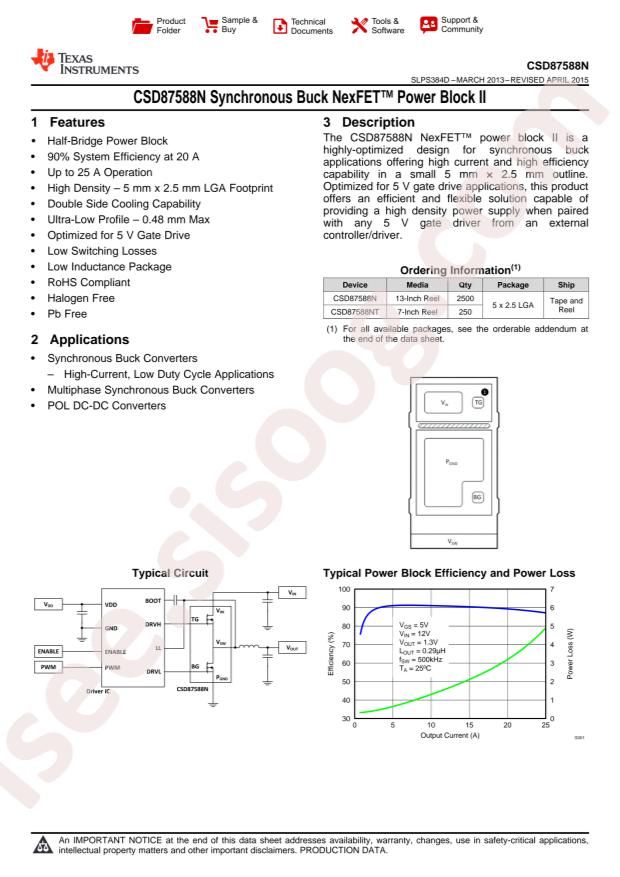

CSD87588N Datasheet 23 pages
مشخصات فنی
- RoHS: true
- Type: 2 N-Channel(Half Bridge)
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: Texas Instruments CSD87588N
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 6W
- Total Gate Charge (Qg@Vgs): 4.1nC@4.5V
- Drain Source Voltage (Vdss): 30V
- Input Capacitance (Ciss@Vds): 736pF@15V
- Continuous Drain Current (Id): 25A
- Gate Threshold Voltage (Vgs(th)@Id): 1.9V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 9.6mΩ@10V,15A
- Package: PTAB-5
- Manufacturer: Texas Instruments
- Input Capacitance (Ciss) (Max) @ Vds: 736pF @ 15V
- Supplier Device Package: 5-PTAB (3x2.5)
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Base Part Number: CSD87588
- Vgs(th) (Max) @ Id: 1.9V @ 250µA
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Logic Level Gate
- Package / Case: 5-XFLGA
- Part Status: Active
- Series: NexFET™
- Drain to Source Voltage (Vdss): 30V
- Rds On (Max) @ Id, Vgs: 9.6mOhm @ 15A, 10V
- Current - Continuous Drain (Id) @ 25°C: 25A
- Power - Max: 6W
- Gate Charge (Qg) (Max) @ Vgs: 4.1nC @ 4.5V
- detail: Mosfet Array 2 N-Channel (Half Bridge) 30V 25A 6W Surface Mount 5-PTAB (3x2.5)
